Name: WAS Strobe light W117 898.1 12 V, 24 V via in-car outlet Assembly, Recess-mount, Screw mount Orange
Brand: WAS
SKU: 2369435

Orange six-lamp LED light, connected with a long black cable. Ideal for vehicle lighting or signalling.

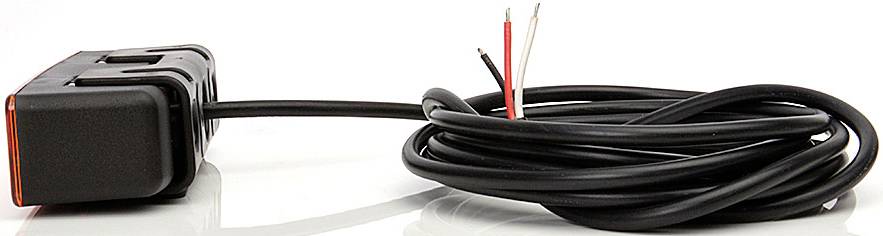

A black cable with three stripped wires is connected to a rectangular, black plastic casing.

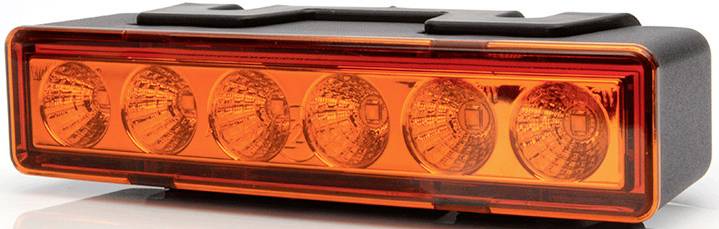

A rectangular, orange rear light with six reflectors, commonly used on vehicles for signalling purposes.

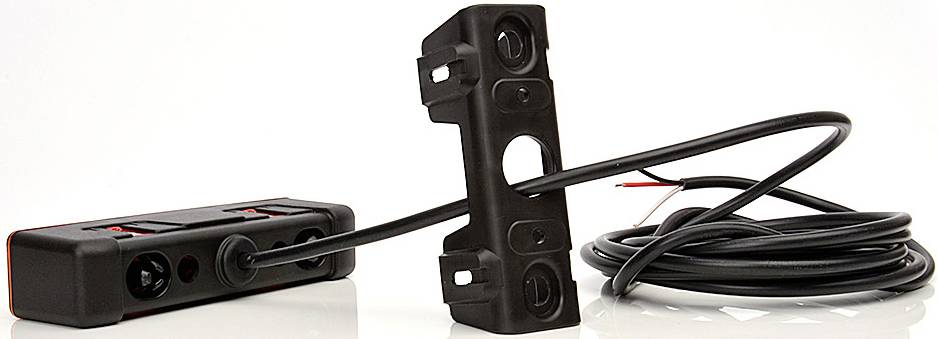

Black rear-view camera with cable and rectangular housing, suitable for vehicle mounting. Reminiscent of a parking assistance device.

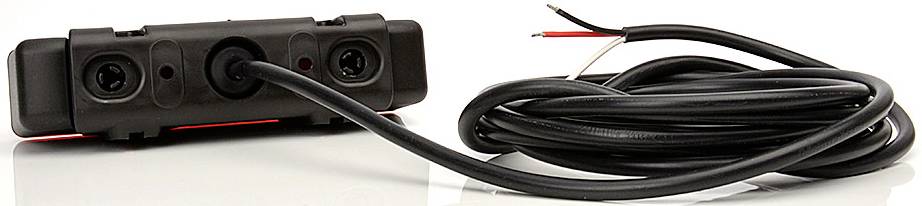

Black reversing camera with two lenses and long connection cable, positioned on a reflective surface.

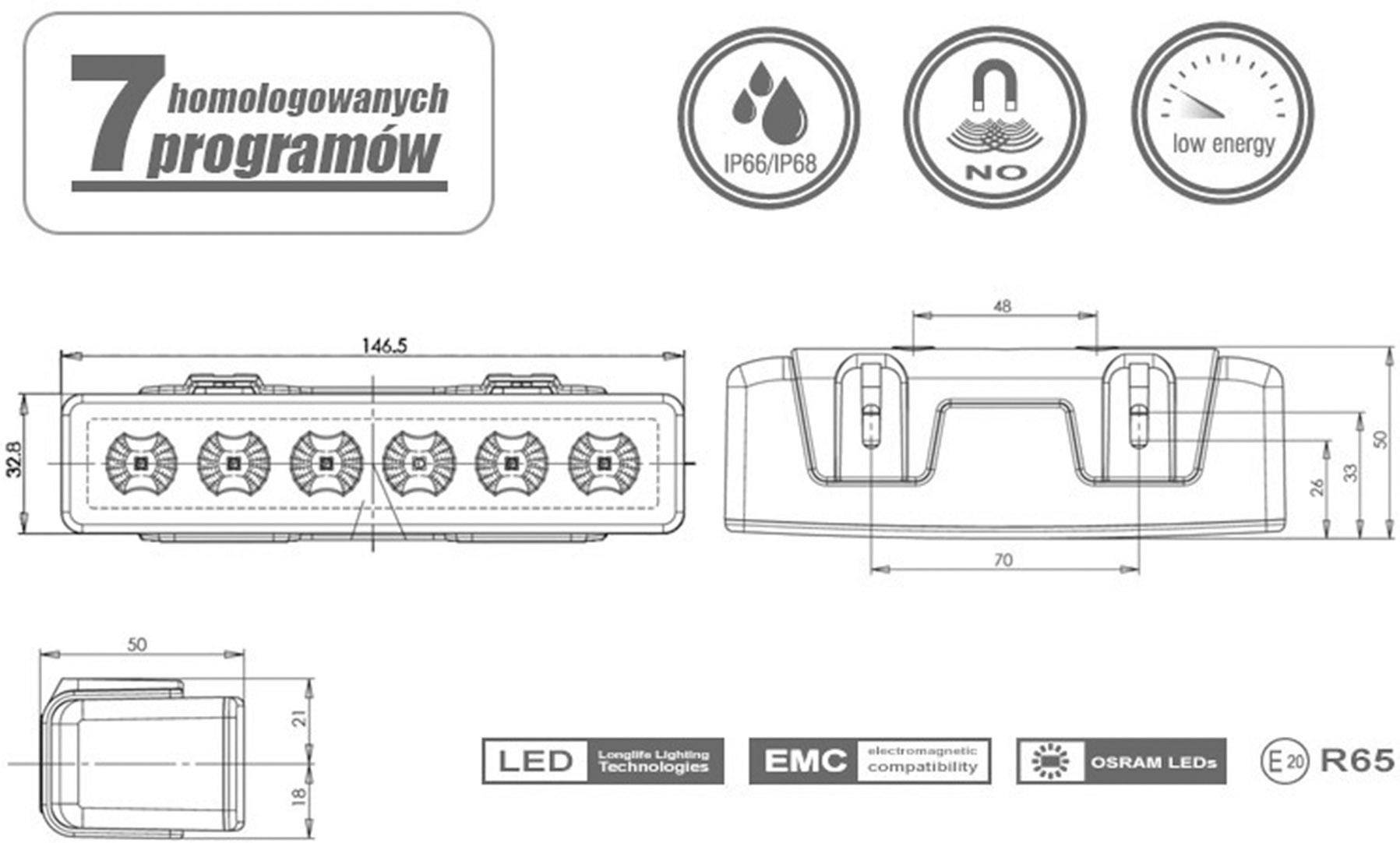

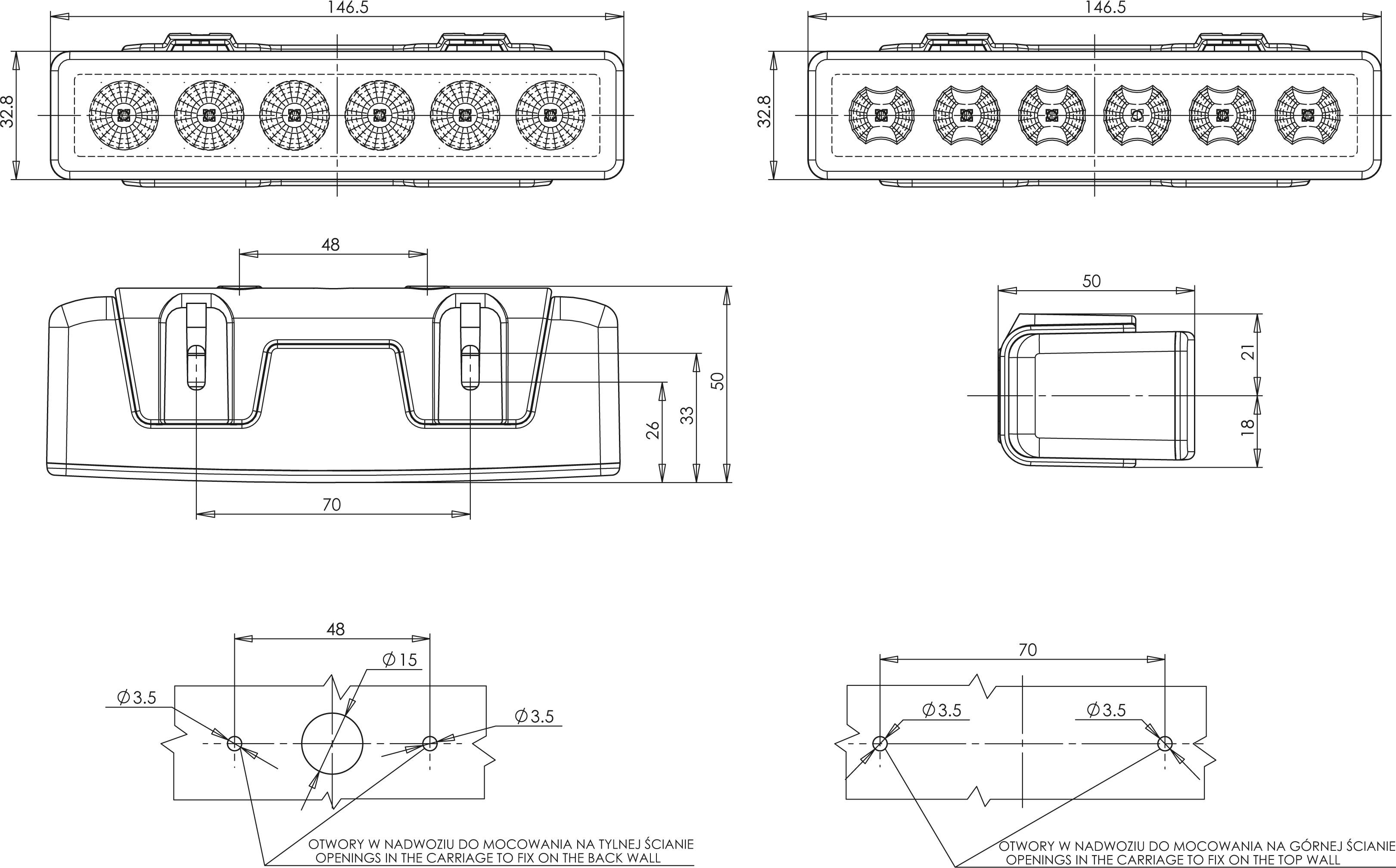

Technical drawing of a rectangular mechanical component with multiple circular details, dimensional specifications, and front, side, and top views.

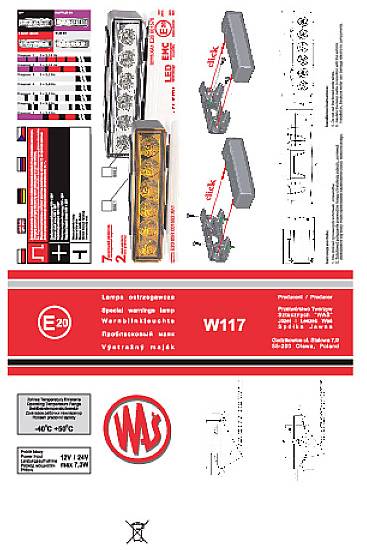

'Technical Drawing and Description of a Warning Light W117 with Certifications, Specifications and Application Guidelines.'

'Packaging for LED Lights: E20 Marking, Technical Specifications, Installation Instructions, LED and ECE Approvals.'

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

LED front flash street light orange

7 flashing frequencies can be set
Clear light disc
3 m connection cable
IP 66/68

Technical specifications

Dim: (W x H x D) 147 x 33 x 50 mm

Product type: Strobe light

Connector: Open cable ends

Certificate: E20 ECE 65R-00 1570 · E20 10R-04 4022

Fastening method: Assembly
Recess-mount
Screw mount

Illumination colours: Orange

Operating voltage: 12 V
24 V

Factory colour: Orange (clear)

Weight: 286 g

Content: 1 pc(s)

Width: 147 mm

Height: 33 mm

Features: 7 flashing speeds

Power supply (LOV): via in-car outlet

Type: W 117

ECE type approval labels: E20 ECE 65R-00 1570 · E20 10R-04 4022

Bulb type: LED (monochrome)

Depth: 50 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2369435 WAS Strobe light W117 898.1 12 V, 24 V via in-car outlet Assembly, Recess-mount, Screw mount Orange

eNum certificate

eNum certificate 2369435 WAS Strobe light W117 898.1 12 V, 24 V via in-car outlet Assembly, Recess-mount, Screw mount Orange

Description

The powerful LED street rake is suitable for installation in the radiator grill, Base Bumper, etc. suitable. Through the modern high-power LED's is the street cleaners striking during the day and night. With only 4.9 watt consumption and 7 adjustable programs is the LED street cleaners for the future.

The flashing frequencies can (optionally available) during the operation of a button can be changed.

This text is machine translated.
