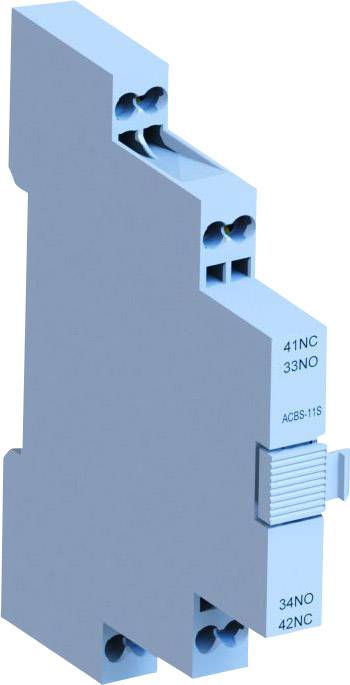

Image similar
WEG 12463908 ACBS-11S Auxiliary switch 10 A 1 maker, 1 breaker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary switch
Switching current (max.)
10 A
Type
Lateral attachment left
Connection
Spring-loaded terminal
Contact type
1 maker
1 breaker
Datasheet (PDF)
Total (€ 11.09 / piece)
€ 11.09
incl. VAT
14-day return policy included
Technical specifications
- Rated operating current: AC-12 10 A, AC-15/24 V 6 A, AC-15/230 V 4 A, AC-15/415 V 3 A, AC-15/500 V 2 A, DC-13/24 V 2 A, DC-13/110 V 0.5,DC-13/220 V 0.25 A
- Product type
Auxiliary switch
- Type
Lateral attachment left
- Connection
Spring-loaded terminal
- Contact type
1 maker
1 breaker
- Switching current (max.)
10 A
- Min. temperature
-20 °C
- Max. temperature
+70 °C
IP20
- Length
69 mm
- Width
9 mm
- Height
90 mm
- Compatible with (details)
MPW motor protection circuit breaker
- Content
1 pc(s)
- Type
ACBS-11S
- Dim
(L x W x H) 69 x 9 x 90 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1398382 WEG 12463908 ACBS-11S Auxiliary switch 10 A 1 maker, 1 breaker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1398382 WEG 12463908 ACBS-11S Auxiliary switch 10 A 1 maker, 1 breaker 1 pc(s)
Description
Auxiliary switch block with clamping technology to the left side of motor protection circuit breaker.
