Name: WEG Frequency inverter CFW500 A 04P3 S2 0.75 kW 1-phase 200 V, 240 V
Brand: WEG
SKU: 2523208
Availability: BackOrder

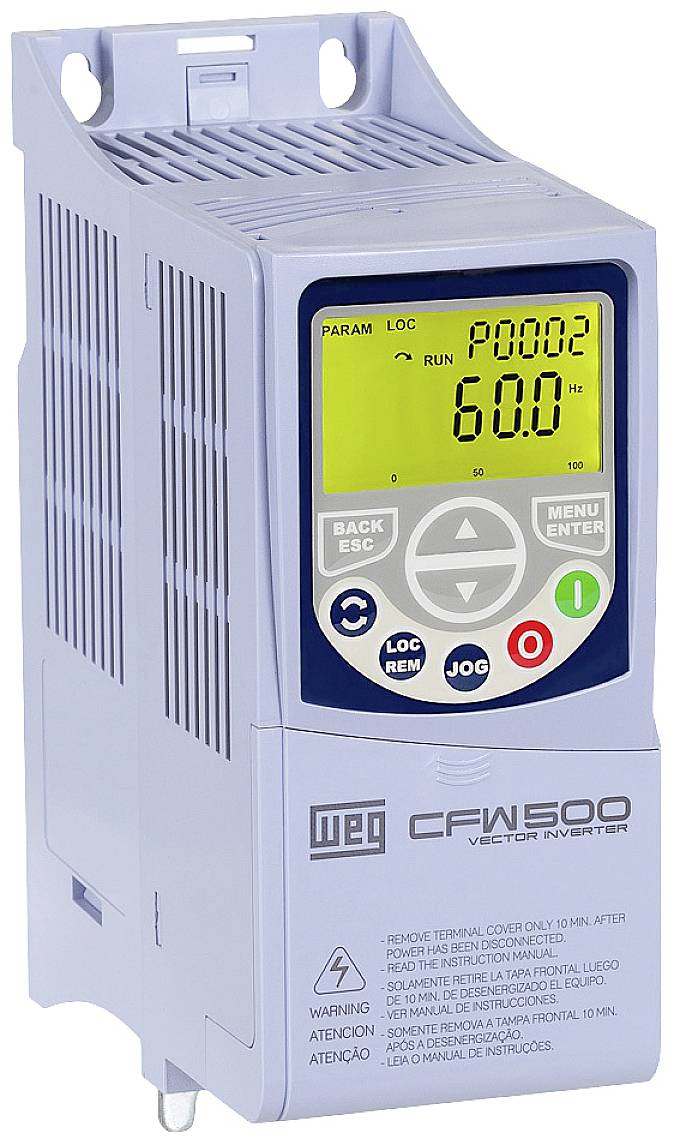

The image shows a WEG CFW500 frequency inverter with a digital display reading '60.0'.

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 385.00 / piece)

€ 385.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Typical motor power:0.75 kW with 150% overload capacity for 60s every 10 min.To 4.3 A rated motor currentWith operating and monitoring moduleWith integrated EMC filter, C2With painted circuit boardsSize A Ambient conditions 1000 m.Operating temperature: -10°C to 40°C, 40°C for installation side by side Up to 60°C with current derating (2% per 1°C above 40°C)Documentation: 1 x GermanPower specifications referring to 3AC 230V 50Hz, 4-pin motorsCertified to UL, CSA, CE

Input voltage: 200 V
240 V

Product type: Frequency inverter

Output rating (max.): 0.75 kW

Max. frequency: 60 Hz

Min. frequency: 50 Hz

Network: 1-phase

Frequency range: 50 Hz - 60 Hz

Nominal current: 4.3 A

Depth: 150 mm

Height: 190 mm

Width: 76 mm

: IP20

Type: CFW500 A 04P3 S2

Filter class: C2

Dim: (W x H x D) 76 x 190 x 150 mm

Manufacturer part #: 15571952

Weight: 0.8 kg

Variants(All information include VAT, plus shipping costs)

Network

Input voltage

Output rating (max.)

WEG Frequency inverter CFW500 A 04P3 S2 0.75 kW 1-phase 200 V, 240 V

Item no:2523208

Available soon

Conrad Electronic

This article

1-phase

200 V

0.75 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 385.00^*

WEG Frequency inverter CFW500 A 01P0 T4 0.25 kW 3-phase 380 V, 480 V

Item no:2523203

Available soon

Conrad Electronic

3-phase

380 V

0.25 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 359.00^*

WEG Frequency inverter CFW500 A 01P6 S2 0.25 kW 1-phase 200 V, 240 V

Item no:2523204

Available soon

Conrad Electronic

1-phase

200 V

0.25 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

WEG Frequency inverter CFW500 A 01P6 T4 0.75 kW 3-phase 380 V, 480 V

Item no:2523205

Available soon

Conrad Electronic

3-phase

380 V

0.75 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 395.00^*

WEG Frequency inverter CFW500 A 02P6 S2 0.55 kW 1-phase 200 V, 240 V

Item no:2523206

Available soon

Conrad Electronic

1-phase

200 V

0.55 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

WEG Frequency inverter CFW500 A 02P6 T4 1.1 kW 3-phase 380 V, 480 V

Item no:2523207

Available soon

Conrad Electronic

3-phase

380 V

1.1 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 409.00^*

WEG Frequency inverter CFW500 A 04P3 T4 1.5 kW 3-phase 380 V, 480 V

Item no:2523209

Available soon

Conrad Electronic

3-phase

380 V

1.5 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 475.00^*

WEG Frequency inverter CFW500 A 06P1 T4 2.2 kW 3-phase 380 V, 480 V

Item no:2523210

Available soon

Conrad Electronic

3-phase

380 V

2.2 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 585.00^*

WEG Frequency inverter CFW500 A 07P0 S2 1.5 kW 1-phase 200 V, 240 V

Item no:2523211

Available soon

Conrad Electronic

1-phase

200 V

1.5 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 559.00^*

WEG Frequency inverter CFW500 B 02P6 T4 1.1 kW 3-phase 380 V, 480 V

Item no:2523212

Available soon

Conrad Electronic

3-phase

380 V

1.1 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 485.00^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2523208 WEG Frequency inverter CFW500 A 04P3 S2 0.75 kW 1-phase 200 V, 240 V

Information

Information 2523208 WEG Frequency inverter CFW500 A 04P3 S2 0.75 kW 1-phase 200 V, 240 V

Description

With a modern design and a power of 0.25 to 75 CV, the CFW500 frequency converter is a high-performance variable speed drive that helps control the speed and torque of three-phase induction motors. The device offers sensorless vector, vector with encoder or scalar control modes, permanent magnet motor control, SoftPLC, the PLC (Programmable Logic Controller) functions, STO and SS1 safety functions, Pump Genius, which provides dedicated pump functions, and selectable plug-in modules that provide a flexible and optimized solution for each application.

This text is machine translated.
