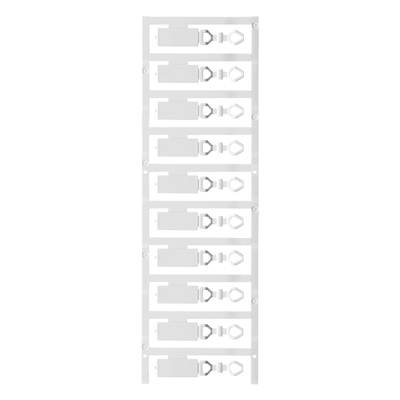

Weidmüller 1016030000 DMC 12/27 MC NE WS Lead marker Fitting type: Clip Writing area: 12 x 27 mm White No. of markers: 5
EAN:
Part number:
Item no:
Product type
Lead marker
Fitting type
Clip
Writing area length
12 mm
Writing area width
27 mm
Type
DMC 12/27 MC NE WS
Datasheet (PDF)
Technical specifications
- Depth: 5 mm
- Net weight: 2.28 g
- Flammability class according to UL 94: V-2
- Material color according to resistance code: 9
- Type
DMC 12/27 MC NE WS
- Product type
Lead marker
- Fitting type
Clip
- Writing area length
12 mm
- Writing area width
27 mm
- Writing area
12 x 27 mm
- Material
PA66
- Suited for series
Single wires
- Features
UL94 flammability rating
- Series
DMC
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Factory colour
White
- No. of markers
50
- Dim
(L x W x H) 12 x 27 x 12 mm
- Industrial packaging
Yes
- Content
50 pc(s)
- Width
27 mm
- Height
12 mm
- Length
12 mm
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 280673 Weidmüller 1016030000 DMC 12/27 MC NE WS Lead marker Fitting type: Clip Writing area: 12 x 27 mm White No. of markers: 5
User & Safety Instructions
User & Safety Instructions 280673 Weidmüller 1016030000 DMC 12/27 MC NE WS Lead marker Fitting type: Clip Writing area: 12 x 27 mm White No. of markers: 5
Description
The DMC markers can be used for labelling switching devices or sub-assemblies. The large (12 x 27 mm) marking surface offers sufficient room for information describing the device and its function. Only one tag size for cable cross-sections from 0.5 – 10 mm2 enables use on both multi-core control cables and single cores.
