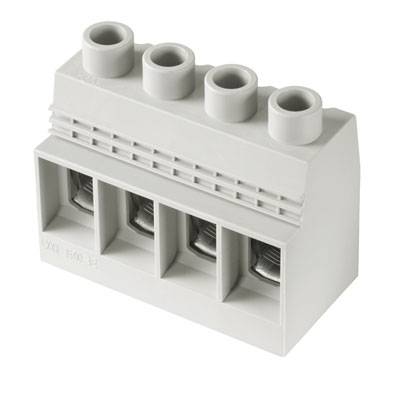

Weidmüller 1047230000 Screw terminal 35 mm² Number of pins 4 Pebble grey 10 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
15 mm
Pins per row
4
Number of pins
4
Connection
Print
Screw terminal
Datasheet (PDF)
Highlights & Details
Screw terminal block
- Content 10 pc(s)
Our service for you
Technical specifications
- Type
LXXX 15.00/04/90 4.5SN GY BX
- Product type
Screw terminal
- CS
15 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Series
LXXX
- Min. stripping length
18 mm
- Stripping length (max.)
18 mm
- Connection
Print
Screw terminal
- Nominal current
126 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
126 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
20
- Connector orientation
Parallel (to the PCB)
- AWG max.
1
- Contact material
Cu-alloy, tin plated
- Factory colour
Pebble grey
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Weight
117 g
- Manufacturer part #
1047230000
- Industrial packaging
Yes
- Content
10 pc(s)
- Nominal voltage
600 V
- Width
61 mm
- Height
56 mm
- Length
31 mm
- Type
LXXX 15.00/04/90 4.5SN GY BX
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 282556 Weidmüller 1047230000 Screw terminal 35 mm² Number of pins 4 Pebble grey 10 pc(s)
User & Safety Instructions
User & Safety Instructions 282556 Weidmüller 1047230000 Screw terminal 35 mm² Number of pins 4 Pebble grey 10 pc(s)
