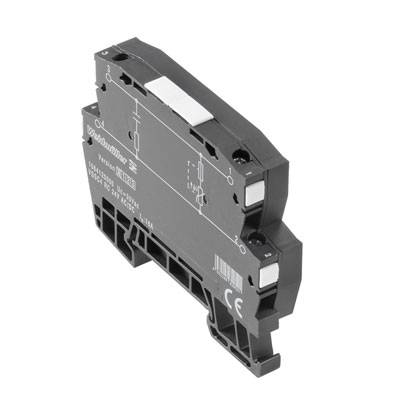

Weidmüller 1064120000 VSSC4 RC 24VAC/DC Surge arrester 5-piece set Surge protection for: Switchboards 0.5 kA 5 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: Screw connection
- Tightening torque, max.: 0.8 Nm
- Tightening torque, min.: 0.5 Nm
- Design: Terminal
- Forward resistance:< 0.1 Ω
- Input voltage, max. UI: 42 V
- Input current, max. II: 16 A
- highest continuous voltage, UC (AC): 30 V
- highest continuous voltage, UC (DC): 42 V
- clamping range, max.: 4 mm²
- Clamping range, min.: 0.5 mm²
- Storage temperature: -40 °C to 80 °C
- conductor cross-section, single-wire, max.: 6 mm²
- conductor cross-section, multi-wire, max.: 4 mm²
- nominal current IN: 20 A
- net weight: 35.2 g
- optical function display: No
- Pole number: 1
- protection level UP (type.): 150 V
- surge current strength C1: 0.25 kA 8/20 µs 0.5 kV 1.2/50 µs
- Overvoltage category: III
- Pollution degree: 3
- Product type
Surge arrester
- Surge protection for
Switchboards
- Leakage current
0.5 kA
- Nominal voltage
24 V AC
34 V DC
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
1064120000
- Factory colour
Black
- Dim
(W x H x D) 12.4 x 76 x 58.5 mm
- Width
12.4 mm
- Height
76 mm
- Depth
58.5 mm
- Content
5 pc(s)
- Weight
38.2 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 283164 Weidmüller 1064120000 VSSC4 RC 24VAC/DC Surge arrester 5-piece set Surge protection for: Switchboards 0.5 kA 5 pc(s)
User & Safety Instructions
User & Safety Instructions 283164 Weidmüller 1064120000 VSSC4 RC 24VAC/DC Surge arrester 5-piece set Surge protection for: Switchboards 0.5 kA 5 pc(s)
Description
Surge protection. Measure tax rules. Surge protection with individual components. With extinguishing wiring/RC circuit, suitable for suppressing solenoid valves.
This text is machine translated.
This text is machine translated.
