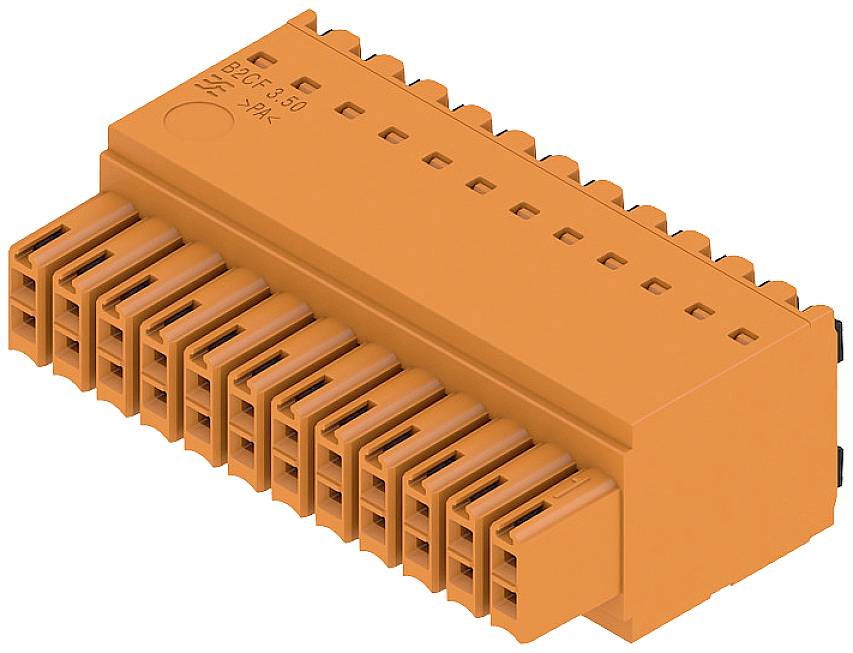

Weidmüller 1277380000 PCB connector Total number of pins 24 No. of rows 1 42 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
24
CS
3.5 mm
Content
42 pc(s)
Total number of pins
24
Datasheet (PDF)
Highlights & Details
- Total number of pins 24
- No. of rows 1
- Content 42 pc(s)
Our service for you
Technical specifications
- Depth: 26.25 mm
- Insulating material: PA 66 GF 30
- Storage temperature: -25 °C to +55 °C.
- Stripped length: 10 mm
- Conductor connection technology: PUSH-IN, spring connection
- Conductor outlet direction: 180°
- Touch protection: IP20
- Insertion force/pole 5 N.
- Pulling force/pole: 5 N.
- Short-term current strength: 3 x 1s with 80 A.
- Actuator color: Black
- Material actuating element: PA 66/6
- Actuator force 40 N.
- Product type
PCB connector
- Total no. of pins
24
- Total number of pins
24
- No. of rows
1
- CS
3.5 mm
- Nominal current
9.5 A
- Nominal current - rounded value
9.5 A
- DIN standard
DIN 5264
- Pins per row
24
- Connection
Push-in connector
Spring-loaded terminal
- Factory colour
Orange
- Case material
PA
- Manufacturer part #
1277380000
- Content
42 pc(s)
- Contact material
Copper
- Width
42 mm
- Height
15.2 mm
- Max. temperature
+120 °C
- Min. temperature
-50 °C
- Type
B2CF 3.50/24/180 SN OR BX
26 AWG - 16 AWG
- Dim
(W x H) 42 mm x 15.2 mm
- Insulation resistance
100 MΩ
- Clamping range diameter mm
0.14 mm² - 1.5 mm²
- Connector contact surface
Tin plated
- Dimensions
42 mm x 15.2 mm x 26.25 mm
- Nominal voltage
300 V
- Number of pins
24
- Cross section
1.5 mm²
- RoHS-compliant
Yes
- Mating cycles
25
- UKCA
not relevant
