Name: Weidmüller 1289550000 PCB connector Total number of pins 24 No. of rows 1 36 pc(s)
Brand: Weidmüller
SKU: 1952172

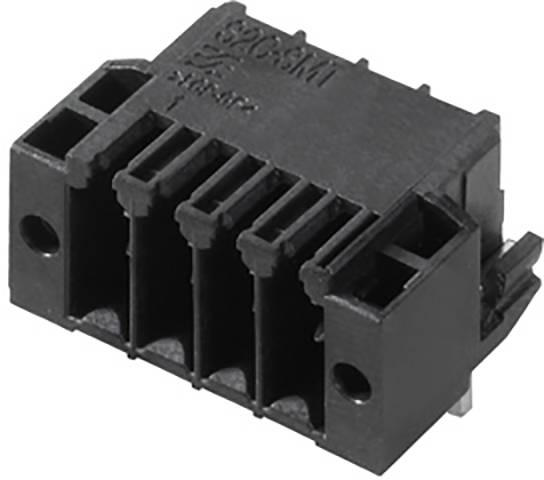

A black, rectangular electrical connector with multiple vertical pins and two side mounting holes.

Product type

PCB connector

Total no. of pins

3.5 mm

Content

36 pc(s)

Total number of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Total number of pins 24
No. of rows 1
Content 36 pc(s)

Our service for you

Technical specifications

Depth: 14.2 mm
PCB mounting: THT/THR solder connection
Departure angle: 90°
Number of solder pins per pin: 1
Mounting hole diameter 1.3 mm
Insulating material: LCP GF
Storage temperature: -25 °C to +55 °C.
Touch protection: IP20
Insertion force/pin 3.5 N
Pulling force/pole: 2.5 N.
Short-term current strength: 3 x 1s with 80 A.
Solder pin length 3.2 mm
External diameter of solder pad: 2.1 mm
Template hole diameter 1.9 mm

Product type: PCB connector

Total no. of pins: 24

Total number of pins: 24

No. of rows: 1

CS: 3.5 mm

Nominal current: 10 A

Nominal current - rounded value: 10 A

Pins per row: 24

Connection: THT
THR
Soldering

Factory colour: Black

Case material: PA

Manufacturer part #: 1289550000

Content: 36 pc(s)

Contact material: Copper

Width: 45.6 mm

Height: 14 mm

Max. temperature: +120 °C

Min. temperature: -50 °C

Type: S2C-SMT 3.50/24/90LF 3.2SN BK BX

Dim: (W x H) 45.6 mm x 14 mm

Insulation resistance: 100 MΩ

Connector contact surface: Tin plated

Dimensions: 45.6 mm x 14 mm x 14.2 mm

Nominal voltage: 150 V

Number of pins: 24

RoHS-compliant: Yes

Mating cycles: 25

Pin length: 3.2 mm

UKCA: not relevant
