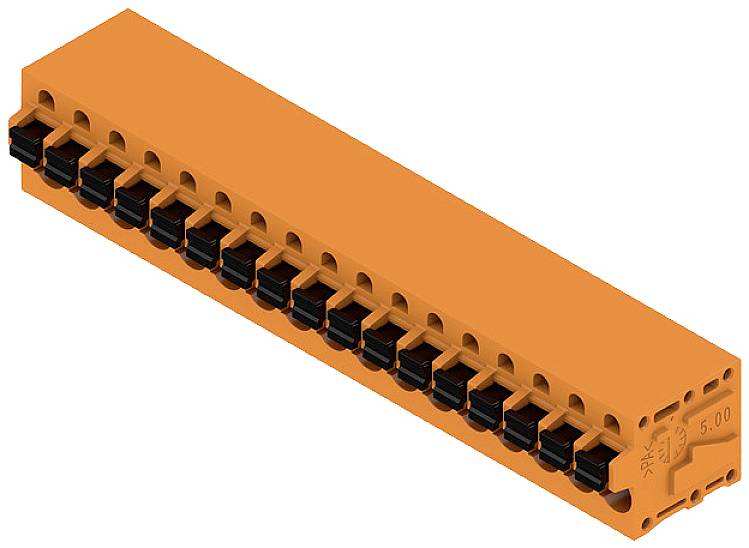

Weidmüller 1331870000 Screw terminal 2.5 mm² Number of pins 17 Orange 15 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
5 mm
Pins per row
17
Number of pins
17
Connection
Print
Push-in connector
Datasheet (PDF)
Highlights & Details
Our service for you
Technical specifications
- Type
LMF 5.00/17/90 3.5SN OR BX
- Product type
Screw terminal
- CS
5 mm
- No. of rows
1
- Pins per row
17
- Number of pins
17
- Min. stripping length
10 mm
- Stripping length (max.)
10 mm
- Connection
Print
Push-in connector
- Nominal current
20 A
- Cross section (flexible) (min.)
0.25 mm²
- Nominal current - rounded value
20 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
24
- Connector orientation
Parallel (to the PCB)
- AWG max.
12
- Contact material
Copper alloy tin plated
- Factory colour
Orange
- Weight
24.22 g
- Manufacturer part #
1331870000
- Content
15 pc(s)
- Nominal voltage
300 V
- Width
87.7 mm
- Height
18.3 mm
- Length
19.2 mm
- Type
LMF 5.00/17/90 3.5SN OR BX
- UKCA
not relevant
