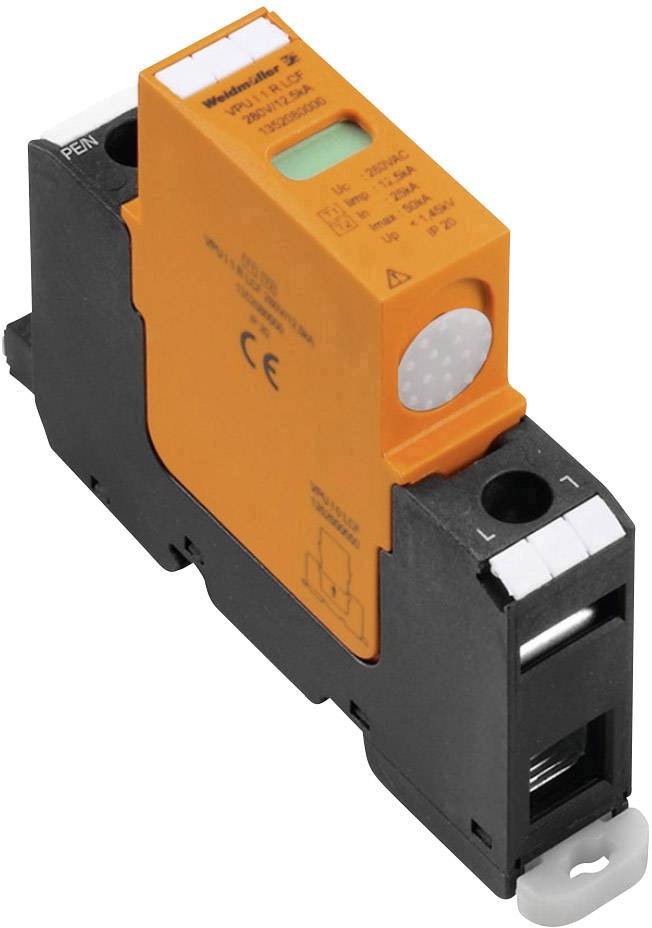

Weidmüller 1352080000 VPU I 1 R LCF 280V/12,5KA Surge arrester 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Wire stripping length: 8 mm
- Wire stripping length, measuring connection 15 mm
- Connection type: Push-IN
- Tightening torque, max.: 3 Nm
- Tightening torque, min.: 2 Nm
- Design: Installation housing; 1 TE, Insta IP20
- Mounting dimensions height 75 mm
- Frequency range, max. 60 Hz
- Frequency range, min.: 50 Hz
- Maximum continuous voltage, UC (AC) 280 V.
- Clamping range, max. 35 mm²
- Clamping range, min. 4 mm²
- Short circuit resistance ISCCR 25kA
- Storage temperature -40 °C to 80 °C.
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, max. 25 mm²
- Conductor cross-section, multi-strand, max. 50 mm²
- Net weight: 189 g
- Optical function display: Green = OK, red = arrester defective, replace
- Number of poles: 1
- Mounting rail TS 35
- Overvoltage category IV
- Pollution level 3
- Product type
Surge arrester
- Leakage current
20 kA
- Nominal voltage
230 V AC
- Pick-up time (details)
≤ 100 ns
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
1352080000
- Type
Type I, Type II
- Factory colour
Black
Orange
- Standards
IEC 61643, EN 61643
- Dim
(W x H x D) 17.8 x 106 x 69 mm
- Width
17.8 mm
- Height
106 mm
- Depth
69 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1912807 Weidmüller 1352080000 VPU I 1 R LCF 280V/12,5KA Surge arrester 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1912807 Weidmüller 1352080000 VPU I 1 R LCF 280V/12,5KA Surge arrester 20 kA 1 pc(s)
Description
Single-pole lightning arresters according to the requirements of the IEC 61643, EN 61643: Class I after 2013 is used the arrester from V0 material during the transition of the interfaces 0 to 1 (according to IEC 1312-1) as a lightning protection potential compensation and is used in applications according to IEC 61643-12. By the use of a not ausblasenden radio link in combination with a high-performance varistor, the requirements for the verifiability of surge protection devices of Class I from the VDEW-directive. The discharger is close to the feed of the protected system into a commercially available installation/manifold installed. The VPU I1R LCF 280 V/12.5 kA is in single phase TN-C and TN-CS network. With thermal separation device divides the varistor. If there is no protection is present, the color changes from green to red in the display window. In addition, the function state by a floating signaling contact (changer) is displayed.
