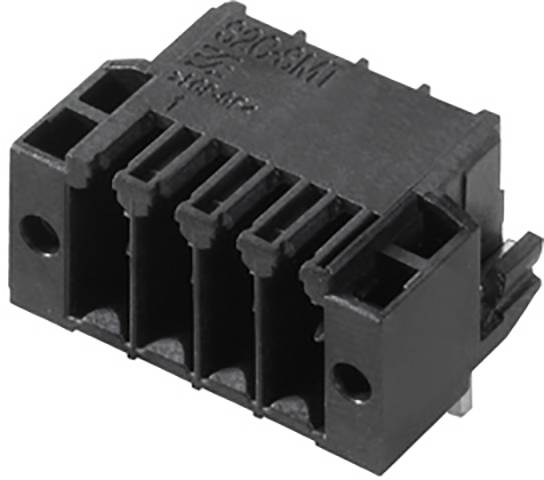

Weidmüller 1358950000 PCB connector Total number of pins 10 No. of rows 1 235 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
10
CS
3.5 mm
Content
235 pc(s)
Total number of pins
10
Datasheet (PDF)
Highlights & Details
- Total number of pins 10
- No. of rows 1
- Content 235 pc(s)
Our service for you
Technical specifications
- Depth: 14.2 mm
- PCB mounting: THT/THR solder connection
- Departure angle: 90°
- Number of solder pins per pin: 1
- Mounting hole diameter 1.3 mm
- Insulating material: LCP GF
- Storage temperature: -25 °C to +55 °C.
- Touch protection: IP20
- Insertion force/pin 3.5 N
- Pulling force/pole: 2.5 N.
- Short-term current strength: 3 x 1s with 80 A.
- Solder pin length 3.2 mm
- External diameter of solder pad: 2.1 mm
- Template hole diameter 1.9 mm
- Product type
PCB connector
- Total no. of pins
10
- Total number of pins
10
- No. of rows
1
- CS
3.5 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Pins per row
10
- Connection
THT
THR
Soldering
- Factory colour
Black
- Case material
PA
- Manufacturer part #
1358950000
- Content
235 pc(s)
- Contact material
Copper
- Width
21.1 mm
- Height
14 mm
- Max. temperature
+120 °C
- Min. temperature
-50 °C
- Type
S2C-SMT 3.50/10/90LF 3.2SN BK RL
- Dim
(W x H) 21.1 mm x 14 mm
- Insulation resistance
100 MΩ
- Connector contact surface
Tin plated
- Dimensions
21.1 mm x 14 mm x 14.2 mm
- Nominal voltage
150 V
- Number of pins
10
- RoHS-compliant
Yes
- Mating cycles
25
- Pin length
3.2 mm
- UKCA
not relevant
