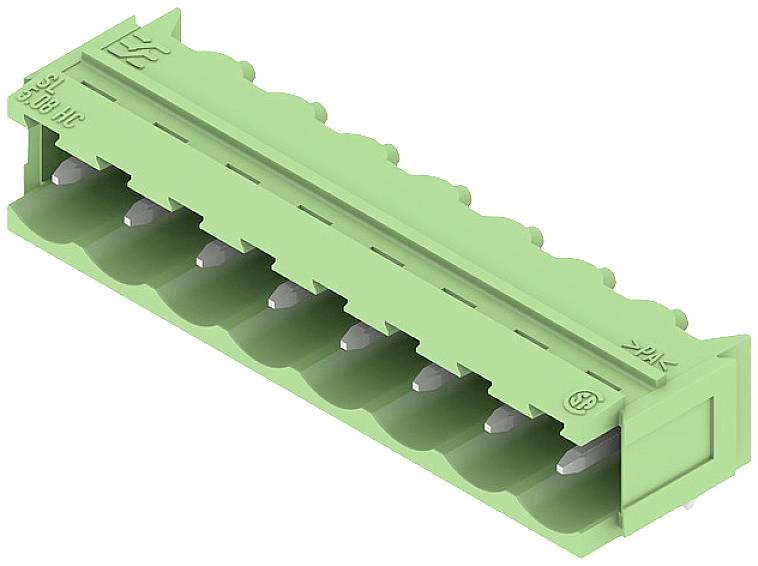

Weidmüller 1409330000 PCB connector Total number of pins 8 50 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
8
CS
5.08 mm
Content
50 pc(s)
Total number of pins
8
Datasheet (PDF)
Highlights & Details
- Total number of pins 8
- Content 50 pc(s)
Our service for you
Technical specifications
- Depth: 12 mm
- PCB mounting: THT solder connection
- Departure angle: 90°
- Number of solder pins per pin: 1
- Insulating material: PA GF
- Storage temperature: -25 °C to +55 °C.
- Insertion force/pole 10 N.
- Pulling force/pole: 7.5 N.
- Solder pin length 3.2 mm
- Product type
PCB connector
- Total no. of pins
8
- Total number of pins
8
- CS
5.08 mm
- Nominal current
18.5 A
- Nominal current - rounded value
18.5 A
- Connection
THT
Soldering
- Factory colour
Green
- Case material
PA
- Manufacturer part #
1409330000
- Content
50 pc(s)
- Contact material
CuMg
- Width
42.4 mm
- Height
11.7 mm
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
SL 5.08HC/08/90B 3.2SN GN BX
- Dim
(W x H) 42.4 mm x 11.7 mm
- Resistance
5 mΩ
- Insulation resistance
100 MΩ
- Connector contact surface
Tin plated
- Dimensions
42.4 mm x 11.7 mm x 12 mm
- Nominal voltage
300 V
- Number of pins
8
- RoHS-compliant
Yes
- Mating cycles
25
- Pin length
3.2 mm
- UKCA
not relevant
