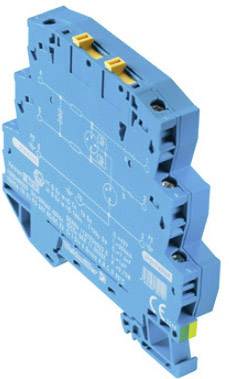

Weidmüller 1421440000 VSSC6TRSLFG24VAC/DC EX Surge arrester 2.5 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: screw terminals.
- Tightening torque, max.: 0.8 Nm
- Tightening torque, min.: 0.5 Nm
- Design: Clamp
- Resistance 1.8 Ω 10%
- Insertion loss 250 MHz
- Input voltage, max. UI 42 V
- Input current, max. II: 300 mA
- Maximum continuous voltage, UC (AC) 30 V.
- Maximum continuous voltage, UC (DC) 42 V.
- Clamping range, max. 4 mm²
- Clamping range, min. 0.5 mm²
- Storage temperature -40 °C to 80 °C.
- Conductor cross-section, single-wire, max. 6 mm²
- Conductor cross-section, multi-strand, max. 4 mm²
- Nominal current IN 300 mA
- Net weight: 0.081 g
- Optical function display: No.
- Number of poles: 1
- Protection level UP (typ.): ≤ 1870 V.
- Shock resistance C2 2.5 kA 8/20 µs 5 kV 1.2/50 µs
- Surge current strength C3: 50 A 10/1000 μs
- Surge current strength D1: 1 kA 10/350 μs
- Mounting rail TS 35
- Over voltage category III
- Pollution level 3
- Product type
Surge arrester
- Leakage current
2.5 kA
- Nominal voltage
24 V AC
34 V DC
- Operating temperature
-40 °C to +70 °C °C
IP20
- Manufacturer part #
1421440000
- Factory colour
Light blue
- Standards
IEC61643-21:2009, DIN EN 60079-0 2009, DIN EN 60079-26:2007, DIN EN 61241-11:2006
- Dim
(W x H x D) 12.4 x 88.5 x 81 mm
- Width
12.4 mm
- Height
88.5 mm
- Depth
81 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1913063 Weidmüller 1421440000 VSSC6TRSLFG24VAC/DC EX Surge arrester 2.5 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1913063 Weidmüller 1421440000 VSSC6TRSLFG24VAC/DC EX Surge arrester 2.5 kA 1 pc(s)
Description
Overvoltage in one-piece 12.4 mm wide rail module for a ground potential free intrinsically safe signal circuit with 48 Vuc in 2-wire technology. Here, a current loop with max. 0.6A protected. Each signal path can be opened via a separator. The installation of the terminal is at the same time a radio link for high-resistance grounding between the mounting rail (earth) and the reference potential (ground) of a protection circuit. visual identification of the terminal on the nature of the protection circuit and the voltage level. Labelling option on the terminal.
