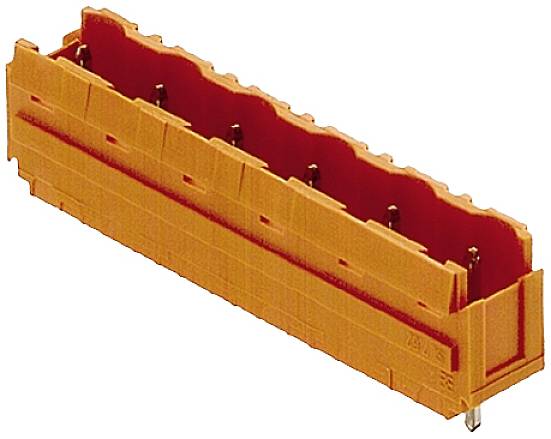

Weidmüller 1452650000 PCB connector Total number of pins 7 50 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
7
CS
7.5 mm
Content
50 pc(s)
Total number of pins
7
Datasheet (PDF)
Highlights & Details
- Total number of pins 7
- Content 50 pc(s)
Our service for you
Technical specifications
- Depth: 8.5 mm
- PCB mounting: THT solder connection
- Outlet angle: 180°
- Number of solder pins per pin: 1
- Mounting hole diameter 1.3 mm
- Insulation material: PBT
- Storage temperature: -25 °C to +55 °C.
- Short-term current strength: 3 x 1s with 120 A.
- Solder pin length 3.2 mm
- Product type
PCB connector
- Total no. of pins
7
- Total number of pins
7
- CS
7.5 mm
- Nominal current
15 A
- Nominal current - rounded value
15 A
- Connection
THT
Soldering
- Factory colour
Green
- Case material
PA
- Manufacturer part #
1452650000
- Content
50 pc(s)
- Contact material
CuSn
- Height
15.2 mm
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
SL 7.50/07/180B 3.2SN GN BX
- Dim
15.2 mm x 8.5
- Resistance
4.5 mΩ
- Insulation resistance
100 MΩ
- Dimensions
15.2 mm x 8.5 mm
- Nominal voltage
300 V
- Number of pins
7
- RoHS-compliant
Yes
- Pin length
3.2 mm
- UKCA
not relevant
