Name: Weidmüller 1473590000 Screw terminal 1.5 mm² Number of pins 10 Black 320 pc(s)
Brand: Weidmüller
SKU: 1949232

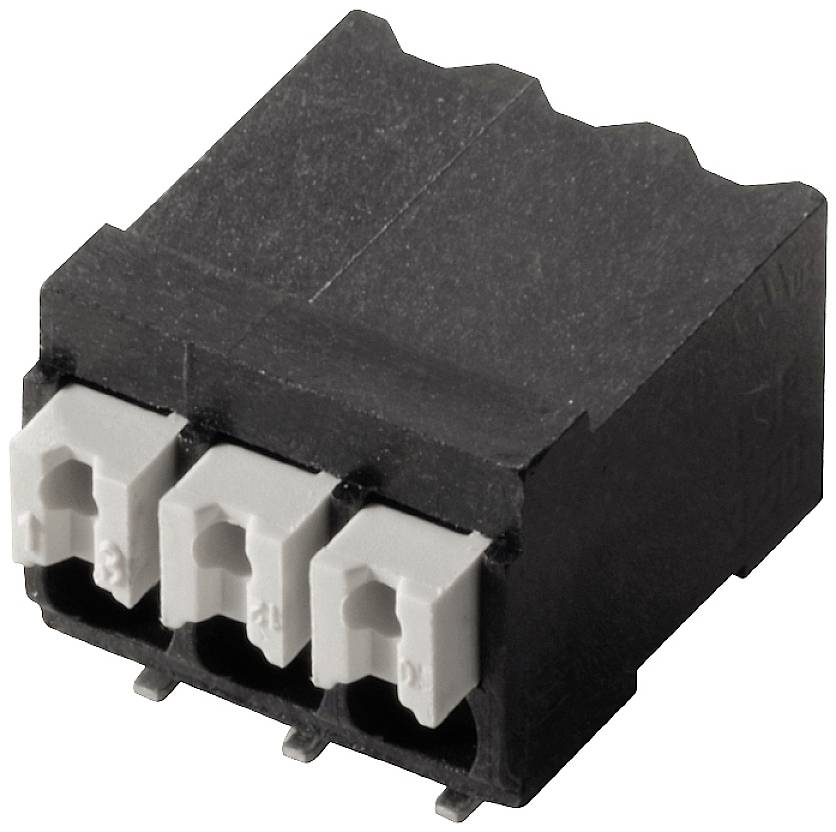

Black three-pole connector with grey terminal blocks for electrical connections in electronic devices.

Product type

Screw terminal

3.5 mm

Pins per row

Number of pins

Connection

SMD

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Content 320 pc(s)

Our service for you

Technical specifications

Type: LSF-SMD 3.50/10/90 SN BK RL

Product type: Screw terminal

CS: 3.5 mm

No. of rows: 1

Pins per row: 10

Number of pins: 10

Series: LSF

Min. stripping length: 8 mm

Stripping length (max.): 8 mm

Connection: SMD

Nominal current: 12 A

Cross section (flexible) (min.): 0.2 mm²

Nominal current - rounded value: 12 A

Cross section (inflexible) (min.): 0.2 mm²

Cross section (flexible) (max.): 1.5 mm²

Cross section (inflexible) (max.): 1.5 mm²

AWG (min.): 28

Connector orientation: Parallel (to the PCB)

AWG max.: 14

Contact material: Copper alloy

Factory colour: Black

Actuation direction: Parallel (to the PCB)

Weight: 6.41 g

Manufacturer part #: 1473590000

Content: 320 pc(s)

Nominal voltage: 300 V

Width: 35.7 mm

Height: 9.65 mm

Length: 14.75 mm

Type: LSF-SMD 3.50/10/90 SN BK RL

UKCA: not relevant
