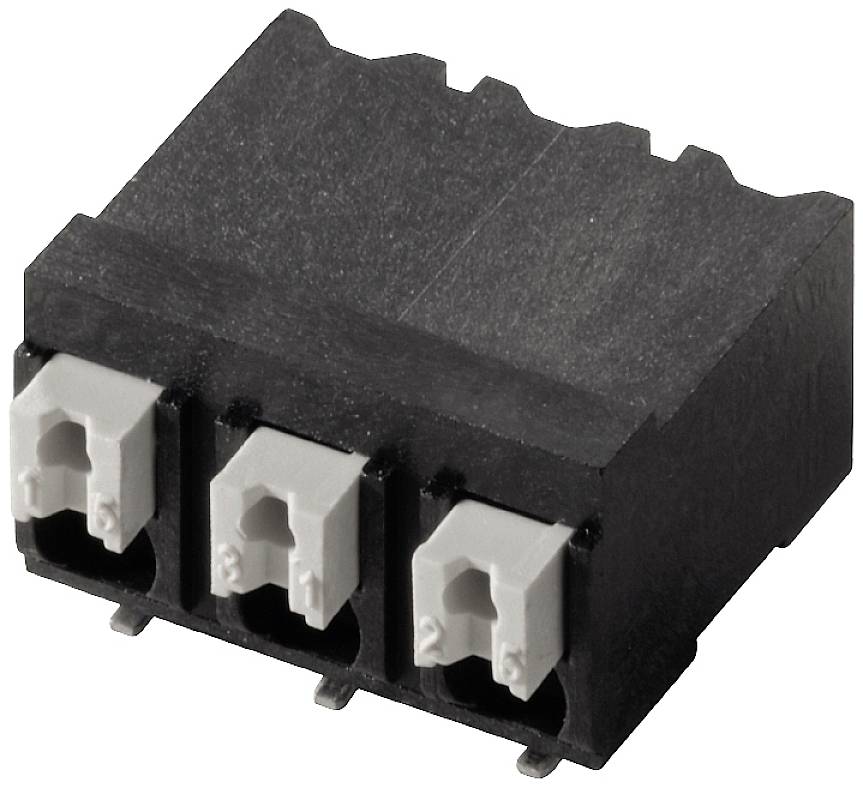

Weidmüller 1473830000 Screw terminal 1.5 mm² Number of pins 8 Black 320 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Screw terminal
CS
5 mm
Pins per row
8
Number of pins
8
Datasheet (PDF)
Highlights & Details
Our service for you
Technical specifications
- Packaging type
Piece
- Type
LSF-SMD 5.00/08/90 SN BK RL
- Product type
Screw terminal
- CS
5 mm
- No. of rows
1
- Pins per row
8
- Number of pins
8
- Series
LSF
- Min. stripping length
8 mm
- Stripping length (max.)
8 mm
- Connection
Plug & Clip
- Nominal current
12 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
12 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
28
- Connector orientation
Parallel (to the PCB)
- AWG max.
14
- Contact material
Copper alloy
- Factory colour
Black
- Actuation direction
Parallel (to the PCB)
- Weight
6.38 g
- Manufacturer part #
1473830000
- Content
320 pc(s)
- Nominal voltage
300 V
- Width
39.2 mm
- Height
9.65 mm
- Length
14.75 mm
- Type
LSF-SMD 5.00/08/90 SN BK RL
- UKCA
not relevant
