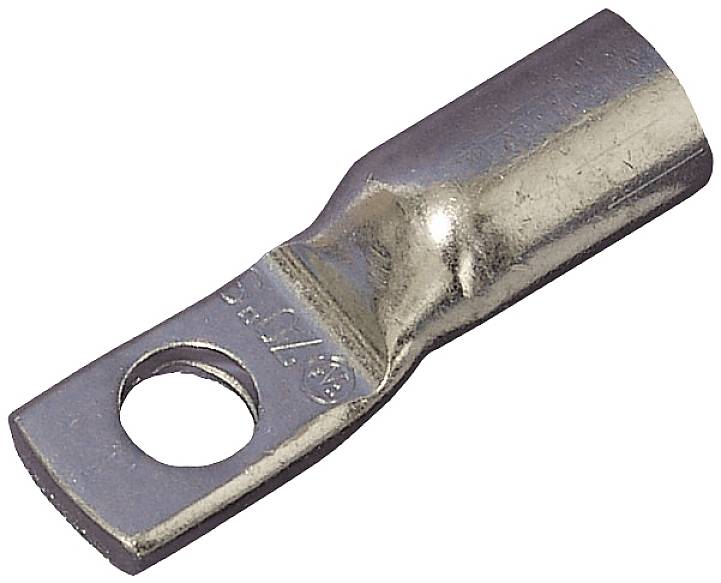

Weidmüller 1494990000 KRN-M12/-185 S Crimp cable lug M12 185 mm² Hole Ø: 13 mm 10 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
185 mm²
Thread size
M12
Hole Ø
13 mm
Content
10 pc(s)
Datasheet (PDF)
Highlights & Details
Pipe cable lug
- Hole Ø: 13 mm
- Cross section (max.): 185 mm²
Our service for you
Technical specifications
- Weight: 10.27 g
- Outer diameter Shaft (D3): 24 mm
- Flange width (b): 26 mm
- Inner diameter Shaft (D1): 18.7 mm
- Shaft length (a): 30 mm
- Product type
Crimp cable lug
- max. cross section
185 mm²
- Thread size
M12
- Hole Ø
13 mm
- Content
10 pc(s)
- Manufacturer part #
1494990000
- Insulation type
Not insulated
- Length
59.5 mm
- RoHS-compliant
Yes
- Type
KRN-M12/-185 S
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1913743 Weidmüller 1494990000 KRN-M12/-185 S Crimp cable lug M12 185 mm² Hole Ø: 13 mm 10 pc(s)
User & Safety Instructions
User & Safety Instructions 1913743 Weidmüller 1494990000 KRN-M12/-185 S Crimp cable lug M12 185 mm² Hole Ø: 13 mm 10 pc(s)
Description
Pipe cable lug copper for long-term consistent quality of the electrical connection.
