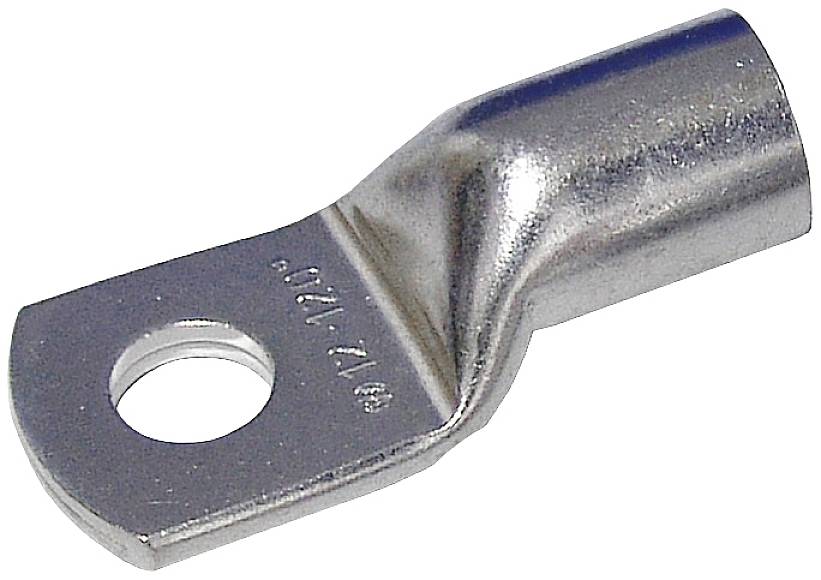

Weidmüller 1495150000 KRN-M6/-4 Crimp cable lug M6 4 mm² Hole Ø: 6.4 mm 100 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
4 mm²
Thread size
M6
Hole Ø
6.4 mm
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details
Pipe cable lug
- Hole Ø: 6.4 mm
- Cross section (max.): 4 mm²
Our service for you
Technical specifications
- Weight: 0.26 g
- Outer diameter Shaft (D3): 5 mm
- Flange width (b): 11 mm
- Inner diameter Shaft (D1): 3 mm
- Shaft length (a): 8 mm
- Product type
Crimp cable lug
- max. cross section
4 mm²
- Thread size
M6
- Hole Ø
6.4 mm
- Content
100 pc(s)
- Manufacturer part #
1495150000
- Insulation type
Not insulated
- Length
20 mm
- RoHS-compliant
Yes
- Type
KRN-M6/-4
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1913751 Weidmüller 1495150000 KRN-M6/-4 Crimp cable lug M6 4 mm² Hole Ø: 6.4 mm 100 pc(s)
User & Safety Instructions
User & Safety Instructions 1913751 Weidmüller 1495150000 KRN-M6/-4 Crimp cable lug M6 4 mm² Hole Ø: 6.4 mm 100 pc(s)
Description
Pipe cable lug copper for long-term consistent quality of the electrical connection.
