Name: Weidmüller 1495990000 KWN-M12/-50 90 Crimp cable lug 90 ° M12 50 mm² Hole Ø: 13 mm 100 pc(s)
Brand: Weidmüller
SKU: 1913800

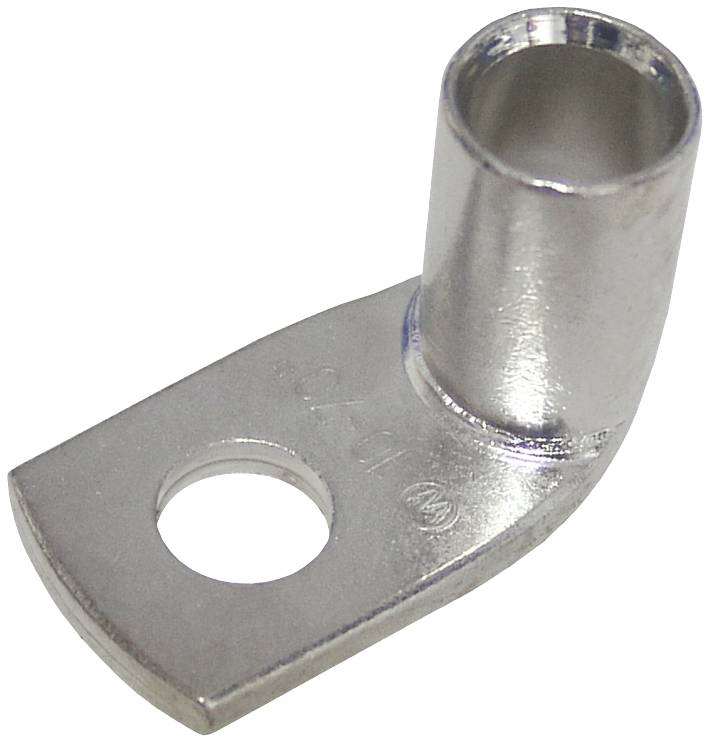

Metal end terminal with a hole and cylindrical connection piece, used for securing cables.

Product type

Crimp cable lug

max. cross section

50 mm²

Thread size

M12

Hole Ø

13 mm

Content

100 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Hole Ø: 13 mm
Cross section (max.): 50 mm²

Our service for you

Technical specifications

Weight: 3.28 g
Outer diameter Shaft (D3): 14 mm
Flange width (b): 23 mm
Inner diameter Shaft (D1): 10 mm
Shaft length (a): 18 mm

Product type: Crimp cable lug

max. cross section: 50 mm²

Thread size: M12

Hole Ø: 13 mm

Connection angle: 90°

Content: 100 pc(s)

Manufacturer part #: 1495990000

Insulation type: Not insulated

Length: 22.5 mm

RoHS-compliant: Yes

Type: KWN-M12/-50 90

UKCA: not relevant
