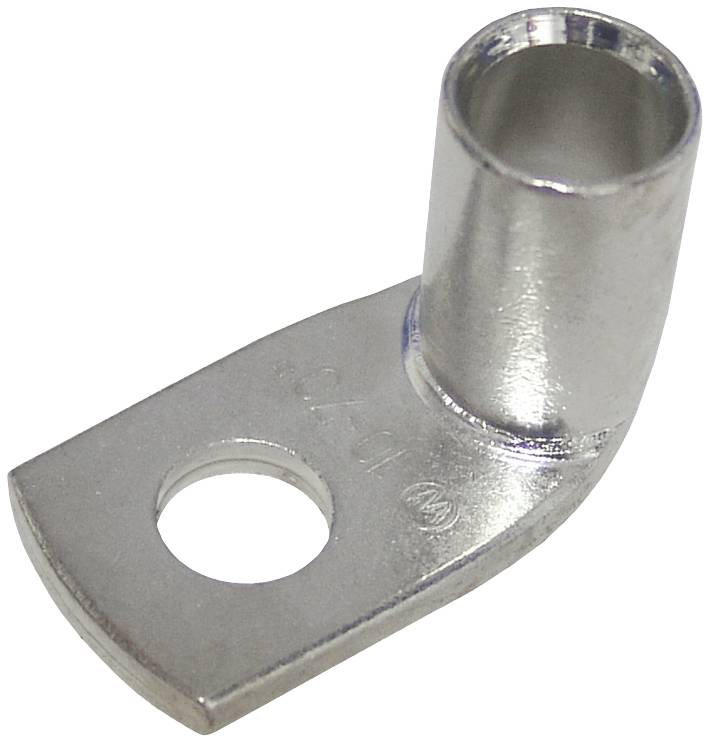

Weidmüller 1496010000 KWN-M6/-70 90 Crimp cable lug 90 ° M6 70 mm² Hole Ø: 6.4 mm 25 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
70 mm²
Thread size
M6
Hole Ø
6.4 mm
Content
25 pc(s)
Datasheet (PDF)
Highlights & Details
Pipe cable lug
- Hole Ø: 6.4 mm
- Cross section (max.): 70 mm²
Our service for you
Technical specifications
- Weight: 4.41 g
- Outer diameter Shaft (D3): 16.5 mm
- Flange width (b): 24 mm
- Inner diameter Shaft (D1): 12 mm
- Shaft length (a): 20 mm
- Product type
Crimp cable lug
- max. cross section
70 mm²
- Thread size
M6
- Hole Ø
6.4 mm
- Connection angle
90°
- Content
25 pc(s)
- Manufacturer part #
1496010000
- Insulation type
Not insulated
- Length
18.8 mm
- RoHS-compliant
Yes
- Type
KWN-M6/-70 90
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1913802 Weidmüller 1496010000 KWN-M6/-70 90 Crimp cable lug 90 ° M6 70 mm² Hole Ø: 6.4 mm 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1913802 Weidmüller 1496010000 KWN-M6/-70 90 Crimp cable lug 90 ° M6 70 mm² Hole Ø: 6.4 mm 25 pc(s)
Description
Pipe cable lug copper for long-term consistent quality of the electrical connection.
