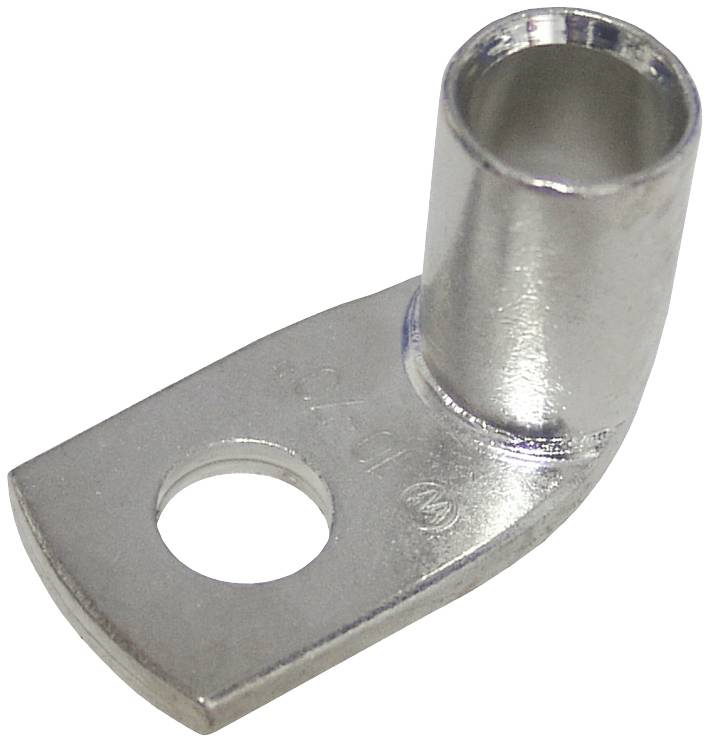

Weidmüller 1496110000 KWN-M16/-95 90 Crimp cable lug 90 ° M16 95 mm² Hole Ø: 17 mm 25 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
95 mm²
Thread size
M16
Hole Ø
17 mm
Content
25 pc(s)
Datasheet (PDF)
Highlights & Details
Pipe cable lug
- Hole Ø: 17 mm
- Cross section (max.): 95 mm²
Our service for you
Technical specifications
- Weight: 6 g
- Outer diameter Shaft (D3): 18 mm
- Flange width (b): 28 mm
- Inner diameter Shaft (D1): 13.5 mm
- Shaft length (a): 22 mm
- Product type
Crimp cable lug
- max. cross section
95 mm²
- Thread size
M16
- Hole Ø
17 mm
- Connection angle
90°
- Content
25 pc(s)
- Manufacturer part #
1496110000
- Insulation type
Not insulated
- Length
27.5 mm
- RoHS-compliant
Yes
- Type
KWN-M16/-95 90
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1913808 Weidmüller 1496110000 KWN-M16/-95 90 Crimp cable lug 90 ° M16 95 mm² Hole Ø: 17 mm 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1913808 Weidmüller 1496110000 KWN-M16/-95 90 Crimp cable lug 90 ° M16 95 mm² Hole Ø: 17 mm 25 pc(s)
Description
Pipe cable lug copper for long-term consistent quality of the electrical connection.
