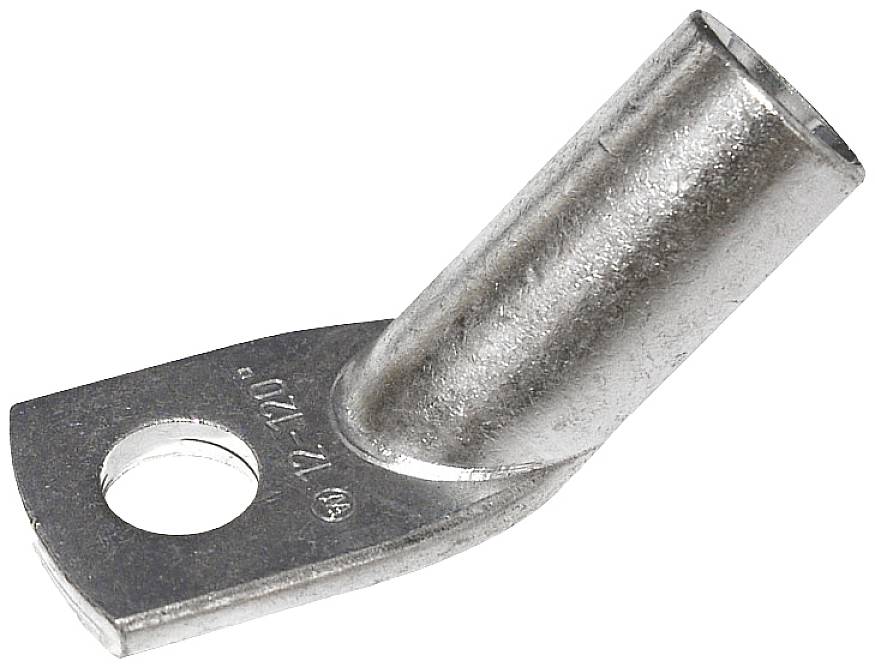

Weidmüller 1496190000 KWN-M8/-25 45 Crimp cable lug 45 ° M8 25 mm² Hole Ø: 8.4 mm 100 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
25 mm²
Thread size
M8
Hole Ø
8.4 mm
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details
- Hole Ø: 8.4 mm
- Cross section (max.): 25 mm²
Our service for you
Technical specifications
- Weight: 1.51 g
- Outer diameter Shaft (D3): 10 mm
- Flange width (b): 16 mm
- Inner diameter Shaft (D1): 7 mm
- Shaft length (a): 14 mm
- Product type
Crimp cable lug
- max. cross section
25 mm²
- Thread size
M8
- Hole Ø
8.4 mm
- Connection angle
45°
- Content
100 pc(s)
- Manufacturer part #
1496190000
- Insulation type
Not insulated
- RoHS-compliant
Yes
- Type
KWN-M8/-25 45
- UKCA
not relevant
