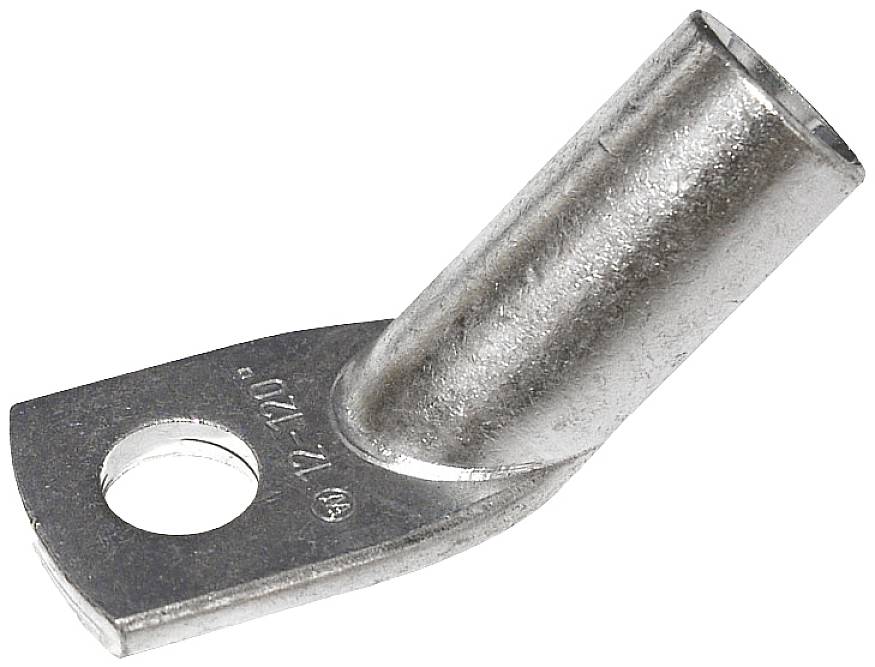

Weidmüller 1496210000 KWN-M12/-25 45 Crimp cable lug 45 ° M12 25 mm² Hole Ø: 13 mm 100 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
25 mm²
Thread size
M12
Hole Ø
13 mm
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details
Pipe cable lug
- Hole Ø: 13 mm
- Cross section (max.): 25 mm²
Our service for you
Technical specifications
- Weight: 1.7 g
- Outer diameter Shaft (D3): 10 mm
- Flange width (b): 20 mm
- Inner diameter Shaft (D1): 7 mm
- Shaft length (a): 14 mm
- Product type
Crimp cable lug
- max. cross section
25 mm²
- Thread size
M12
- Hole Ø
13 mm
- Connection angle
45°
- Content
100 pc(s)
- Manufacturer part #
1496210000
- Insulation type
Not insulated
- RoHS-compliant
Yes
- Type
KWN-M12/-25 45
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1913814 Weidmüller 1496210000 KWN-M12/-25 45 Crimp cable lug 45 ° M12 25 mm² Hole Ø: 13 mm 100 pc(s)
User & Safety Instructions
User & Safety Instructions 1913814 Weidmüller 1496210000 KWN-M12/-25 45 Crimp cable lug 45 ° M12 25 mm² Hole Ø: 13 mm 100 pc(s)
Description
Pipe cable lug copper for long-term consistent quality of the electrical connection.
