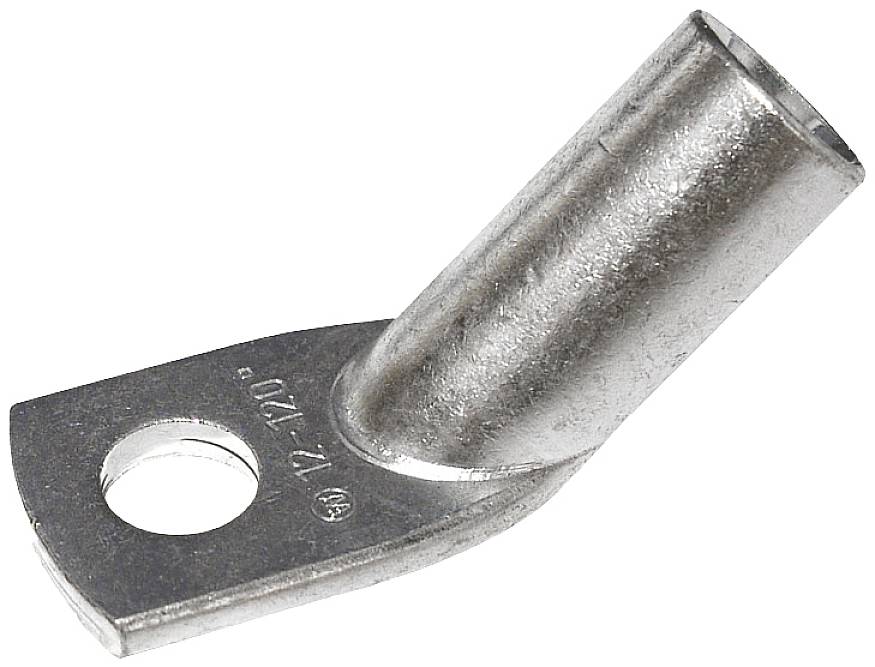

Weidmüller 1496410000 KWN-M12/-120 45 Crimp cable lug 45 ° M12 120 mm² Hole Ø: 13 mm 25 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
120 mm²
Thread size
M12
Hole Ø
13 mm
Content
25 pc(s)
Datasheet (PDF)
Highlights & Details
- Hole Ø: 13 mm
- Cross section (max.): 120 mm²
Our service for you
Technical specifications
- Weight: 8.91 g
- Outer diameter Shaft (D3): 20 mm
- Flange width (b): 29 mm
- Inner diameter Shaft (D1): 15 mm
- Shaft length (a): 25 mm
- Product type
Crimp cable lug
- max. cross section
120 mm²
- Thread size
M12
- Hole Ø
13 mm
- Connection angle
45°
- Content
25 pc(s)
- Manufacturer part #
1496410000
- Insulation type
Not insulated
- RoHS-compliant
Yes
- Type
KWN-M12/-120 45
- UKCA
not relevant
