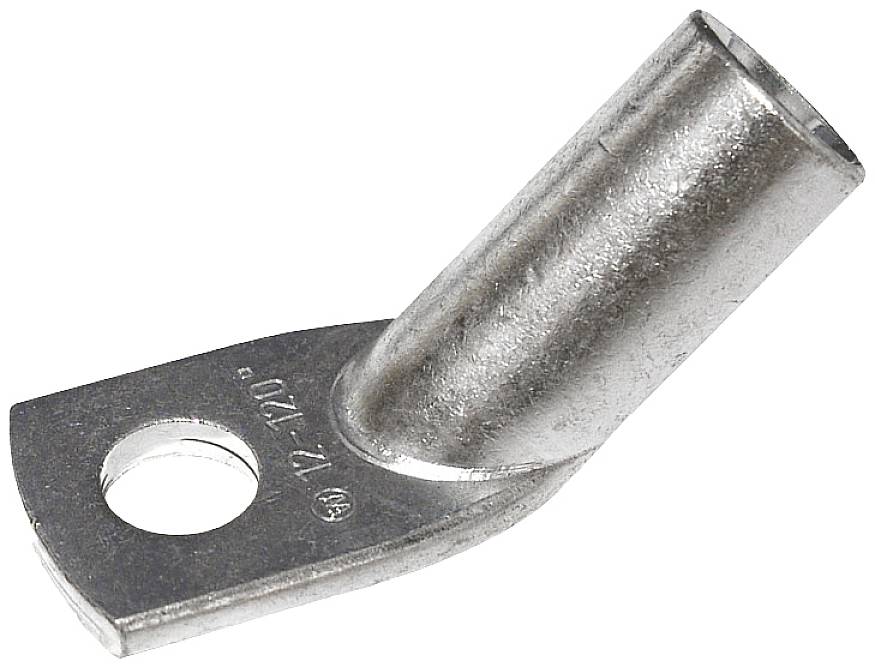

Weidmüller 1496430000 KWN-M8/-150 45 Crimp cable lug 45 ° M8 150 mm² Hole Ø: 8.4 mm 25 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
150 mm²
Thread size
M8
Hole Ø
8.4 mm
Content
25 pc(s)
Datasheet (PDF)
Highlights & Details
Pipe cable lug
- Hole Ø: 8.4 mm
- Cross section (max.): 150 mm²
Our service for you
Technical specifications
- Weight: 11.31 g
- Outer diameter Shaft (D3): 21.3 mm
- Flange width (b): 31 mm
- Inner diameter Shaft (D1): 16.8 mm
- Shaft length (a): 28 mm
- Product type
Crimp cable lug
- max. cross section
150 mm²
- Thread size
M8
- Hole Ø
8.4 mm
- Connection angle
45°
- Content
25 pc(s)
- Manufacturer part #
1496430000
- Insulation type
Not insulated
- RoHS-compliant
Yes
- Type
KWN-M8/-150 45
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1913829 Weidmüller 1496430000 KWN-M8/-150 45 Crimp cable lug 45 ° M8 150 mm² Hole Ø: 8.4 mm 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1913829 Weidmüller 1496430000 KWN-M8/-150 45 Crimp cable lug 45 ° M8 150 mm² Hole Ø: 8.4 mm 25 pc(s)
Description
Pipe cable lug copper for long-term consistent quality of the electrical connection.
