Name: Weidmüller 1496810000 KWN-M5/-10 45 Crimp cable lug 45 ° M5 10 mm² Hole Ø: 5.3 mm 100 pc(s)
Brand: Weidmüller
SKU: 1913850

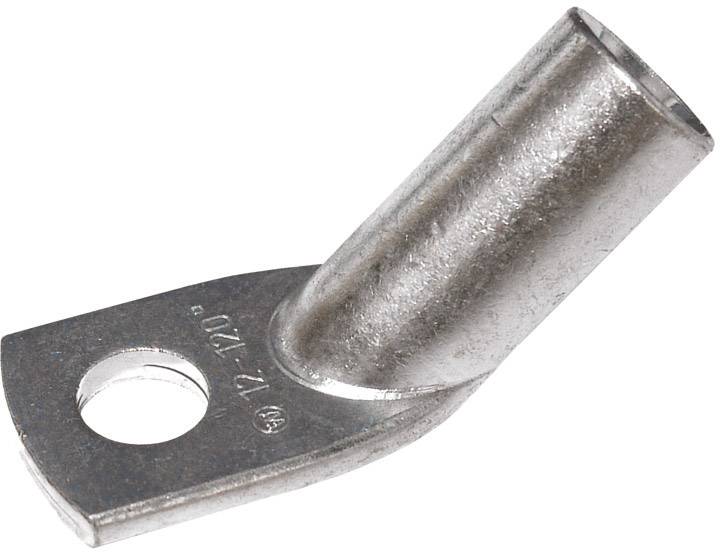

Metallic cable lug with an angled, cylindrical end and a fixing aperture at the flat end for electrical connections.

Image similar

Product type

Crimp cable lug

max. cross section

10 mm²

Thread size

Hole Ø

5.3 mm

Content

100 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Hole Ø: 5.3 mm
Cross section (max.): 10 mm²

Our service for you

Technical specifications

Weight: 0.55 g
Outer diameter Shaft (D3): 7 mm
Flange width (b): 12 mm
Inner diameter Shaft (D1): 4.5 mm
Shaft length (a): 9 mm

Product type: Crimp cable lug

max. cross section: 10 mm²

Thread size: M5

Hole Ø: 5.3 mm

Connection angle: 45°

Content: 100 pc(s)

Manufacturer part #: 1496810000

Insulation type: Not insulated

RoHS-compliant: Yes

Type: KWN-M5/-10 45

UKCA: not relevant
