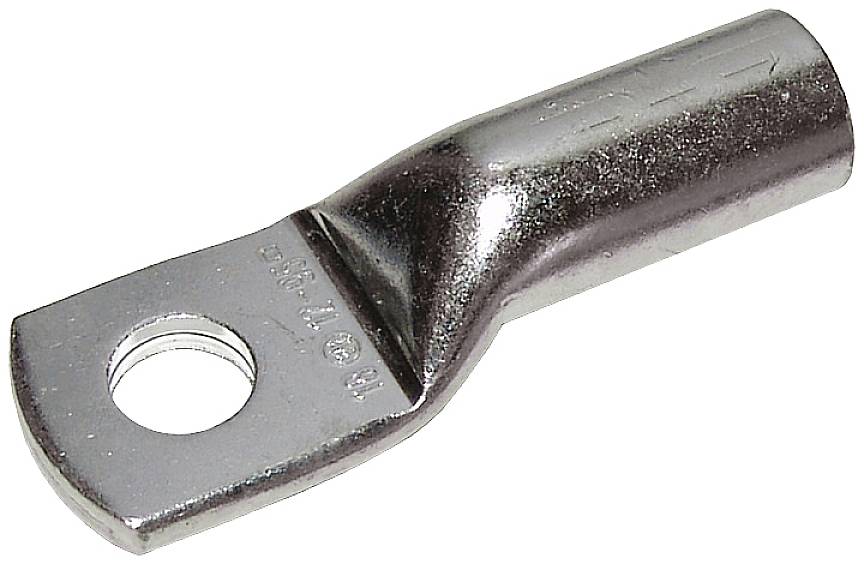

Weidmüller 1497890000 KP-M8/-10 Crimp cable lug M8 10 mm² Hole Ø: 8.4 mm 100 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
10 mm²
Thread size
M8
Hole Ø
8.4 mm
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details
- Hole Ø: 8.4 mm
- Cross section (max.): 10 mm²
Technical specifications
- Weight: 0.38 g
- Outer diameter Shaft (D3): 6 mm
- Flange width (b): 13 mm
- Inner diameter Shaft (D1): 4.4 mm
- Shaft length (a): 10 mm
- Code Cu: 6 K.
- Product type
Crimp cable lug
- max. cross section
10 mm²
- Thread size
M8
- Hole Ø
8.4 mm
- Contact material
Copper
- Content
100 pc(s)
- Manufacturer part #
1497890000
- Insulation type
Not insulated
- Length
28 mm
- RoHS-compliant
Yes
- Type
KP-M8/-10
- UKCA
yes
