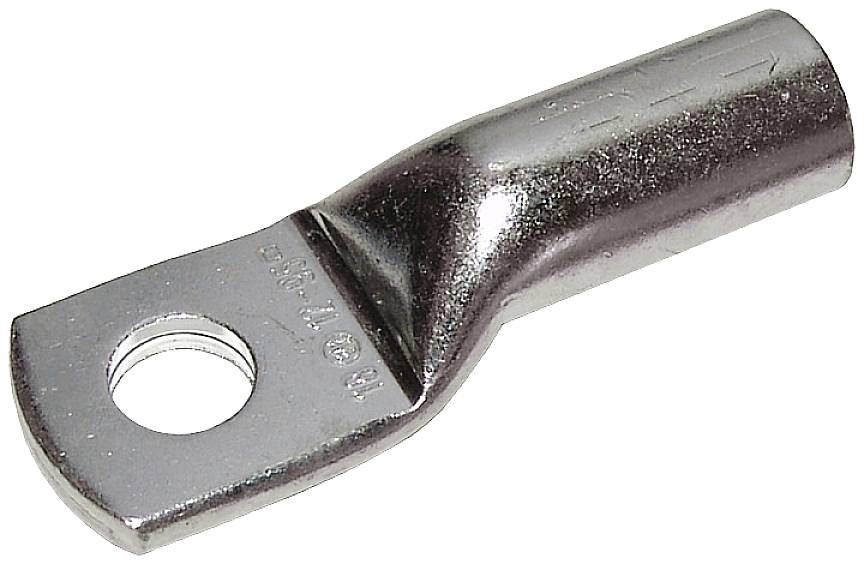

Weidmüller 1498160000 KP-M16/-70 Crimp cable lug M16 70 mm² Hole Ø: 17 mm 50 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
70 mm²
Thread size
M16
Hole Ø
17 mm
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
Pipe cable lug
- Hole Ø: 17 mm
- Cross section (max.): 70 mm²
Our service for you
Technical specifications
- Weight: 6.92 g
- Outer diameter Shaft (D3): 16.5 mm
- Flange width (b): 29 mm
- Inner diameter Shaft (D1): 11.3 mm
- Shaft length (a): 28 mm
- Code Cu: 16 K.
- Product type
Crimp cable lug
- max. cross section
70 mm²
- Thread size
M16
- Hole Ø
17 mm
- Contact material
Copper
- Content
50 pc(s)
- Manufacturer part #
1498160000
- Insulation type
Not insulated
- Length
57 mm
- RoHS-compliant
Yes
- Type
KP-M16/-70
Documents & Downloads
Datasheet
Datasheet 1913917 Weidmüller 1498160000 KP-M16/-70 Crimp cable lug M16 70 mm² Hole Ø: 17 mm 50 pc(s)
User & Safety Instructions
User & Safety Instructions 1913917 Weidmüller 1498160000 KP-M16/-70 Crimp cable lug M16 70 mm² Hole Ø: 17 mm 50 pc(s)
Description
Crimp cable lug made from copper in standard design.
