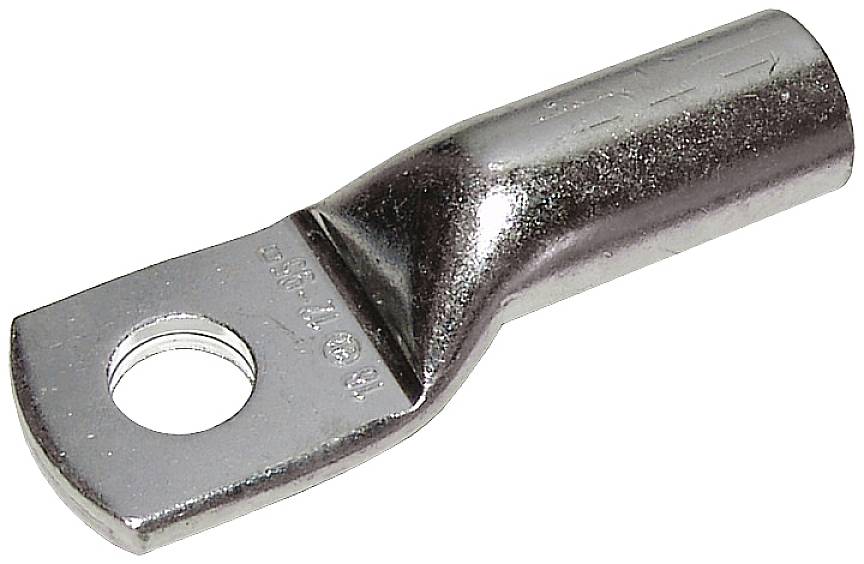

Weidmüller 1498230000 KP-M20/-95 Crimp cable lug M20 95 mm² Hole Ø: 21 mm 50 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
95 mm²
Thread size
M20
Hole Ø
21 mm
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
- Hole Ø: 21 mm
- Cross section (max.): 95 mm²
Our service for you
Technical specifications
- Weight: 9.86 g
- Outer diameter Shaft (D3): 19 mm
- Flange width (b): 33 mm
- Inner diameter Shaft (D1): 13.5 mm
- Shaft length (a): 35 mm
- Code Cu: 18 K.
- Product type
Crimp cable lug
- max. cross section
95 mm²
- Thread size
M20
- Hole Ø
21 mm
- Contact material
Copper
- Content
50 pc(s)
- Manufacturer part #
1498230000
- Insulation type
Not insulated
- Length
71 mm
- RoHS-compliant
Yes
- Type
KP-M20/-95
