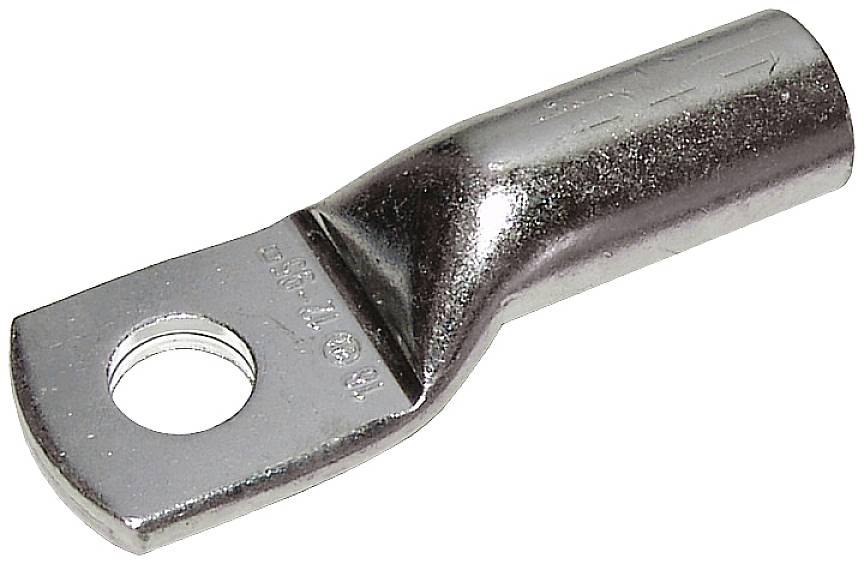

Weidmüller 1498330000 KP-M16/-150 Crimp cable lug M16 150 mm² Hole Ø: 17 mm 25 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
150 mm²
Thread size
M16
Hole Ø
17 mm
Content
25 pc(s)
Datasheet (PDF)
Highlights & Details
Pipe cable lug
- Hole Ø: 17 mm
- Cross section (max.): 150 mm²
Our service for you
Technical specifications
- Weight: 16.35 g
- Outer diameter Shaft (D3): 23.5 mm
- Flange width (b): 34 mm
- Inner diameter Shaft (D1): 17 mm
- Shaft length (a): 35 mm
- Code Cu: 22 K.
- Product type
Crimp cable lug
- max. cross section
150 mm²
- Thread size
M16
- Hole Ø
17 mm
- Contact material
Copper
- Content
25 pc(s)
- Manufacturer part #
1498330000
- Insulation type
Not insulated
- Length
78 mm
- RoHS-compliant
Yes
- Type
KP-M16/-150
Documents & Downloads
Datasheet
Datasheet 1913927 Weidmüller 1498330000 KP-M16/-150 Crimp cable lug M16 150 mm² Hole Ø: 17 mm 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1913927 Weidmüller 1498330000 KP-M16/-150 Crimp cable lug M16 150 mm² Hole Ø: 17 mm 25 pc(s)
Description
Crimp cable lug made from copper in standard design.
