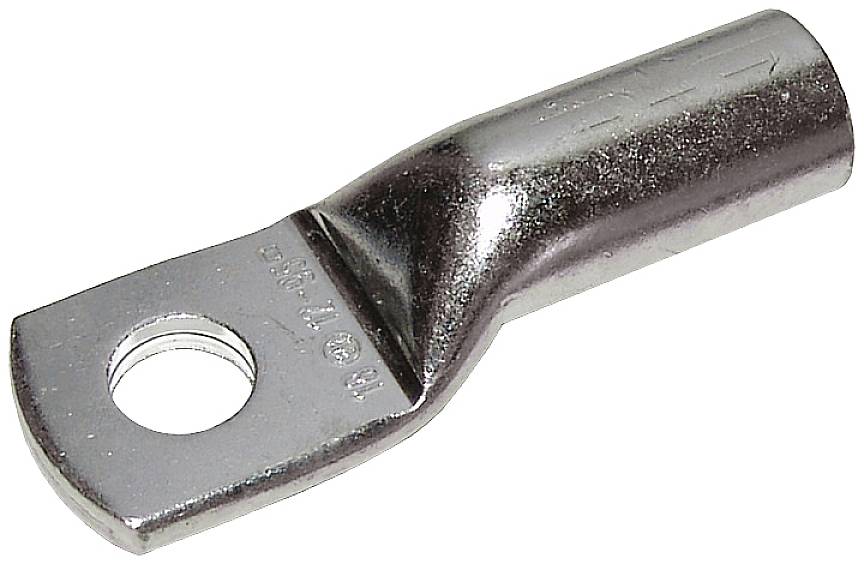

Weidmüller 1498490000 KP-M14/-120 Crimp cable lug M14 120 mm² Hole Ø: 15 mm 50 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp cable lug
max. cross section
120 mm²
Thread size
M14
Hole Ø
15 mm
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
- Hole Ø: 15 mm
- Cross section (max.): 120 mm²
Our service for you
Technical specifications
- Weight: 11.41 g
- Outer diameter Shaft (D3): 21 mm
- Flange width (b): 31 mm
- Inner diameter Shaft (D1): 15.5 mm
- Shaft length (a): 35 mm
- Code Cu: 20 K.
- Product type
Crimp cable lug
- max. cross section
120 mm²
- Thread size
M14
- Hole Ø
15 mm
- Contact material
Copper
- Content
50 pc(s)
- Manufacturer part #
1498490000
- Insulation type
Not insulated
- Length
70 mm
- RoHS-compliant
Yes
- Type
KP-M14/-120
Documents & Downloads
Datasheet
Datasheet 1913938 Weidmüller 1498490000 KP-M14/-120 Crimp cable lug M14 120 mm² Hole Ø: 15 mm 50 pc(s)
User & Safety Instructions
User & Safety Instructions 1913938 Weidmüller 1498490000 KP-M14/-120 Crimp cable lug M14 120 mm² Hole Ø: 15 mm 50 pc(s)
