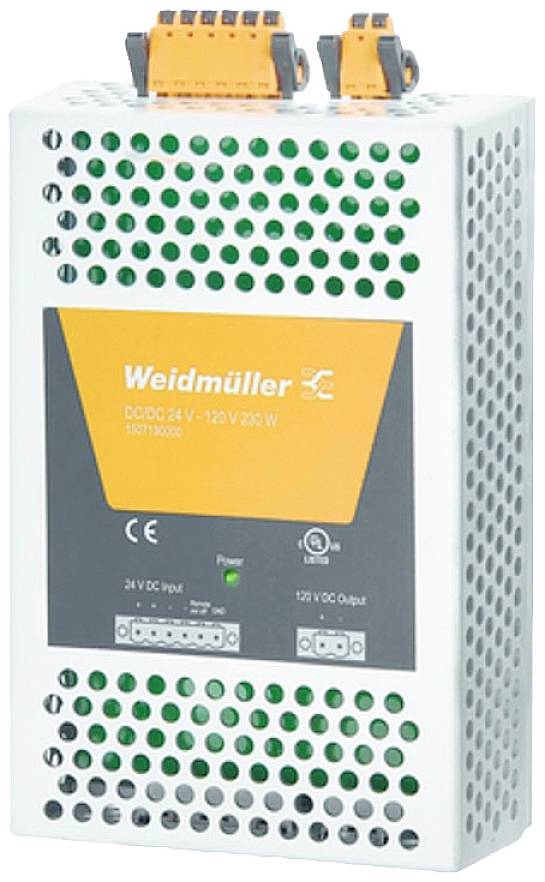

Weidmüller 1507190000 DC/DC converter 2 A 230 W Content 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Conductor cross-section, AWG/kcmil , min.: 26Conductor cross-section, AWG/kcmil , max. 12Conductor cross-section, flexible, min.: 0.5 mm²Conductor cross-section, flexible, max.: 2.5 mm²Conductor cross-section, rigid , min.: 0.5 mm²Conductor cross-section, rigid , max.: 2.5 mm²Suitable for series installation: YesRail mounting possible: Yes
- Type
short circuit resistant
- Nominal input voltage
24 V/DC
- Product type
DC/DC converter
- Min. input voltage
19.2 V DC
- Input voltage (max.)
28.8 V DC
- Max. output current
2 A
- Output current (max.) - rounded
2 A
230 W
- Output type (power supply units)
Adjustable
- Connection
Jack connector
- Dim
(L x W x H) 185 x 120 x 60 mm
- Output voltage (max.)
144 V
- Output voltage (min.)
96 V
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-40 °C
- Manufacturer part #
1507190000
- Content
1 pc(s)
- PSU features
DC-to-DC converter
- Width
120 mm
- Height
60 mm
- Length
185 mm
IP20
- Type
DCDC 24V-120V 230W
- UKCA
not relevant
