Name: Weidmüller 1543070000 PCB connector Total number of pins 5 36 pc(s)
Brand: Weidmüller
SKU: 1949862

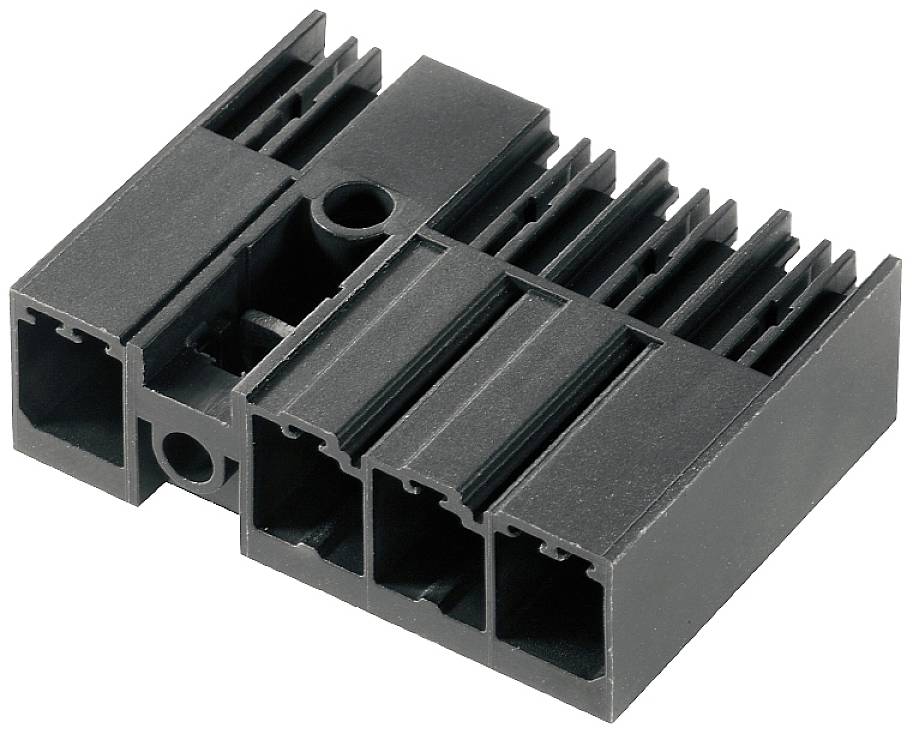

Black plastic plug with rectangular openings, three vertical slots and a round hole. Electronic connector.

Product type

PCB connector

Total no. of pins

7.62 mm

Content

36 pc(s)

Total number of pins

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Total number of pins 5
Content 36 pc(s)

Our service for you

Technical specifications

Depth: 28.3 mm
PCB mounting: THT solder connection
Departure angle: 90°
Number of solder pins per pin: 2
Mounting hole diameter 1.3 mm
Insulating material: PA GF
Storage temperature: -25 °C to +55 °C.
Creepage distance min.: 9.6 mm
Air distance min.: 6.9 mm
Touch protection: IP20
Short-term current strength: 3 x 1s with 420 A.
Soldering pin length 3.5 mm

Product type: PCB connector

Total no. of pins: 5

Total number of pins: 5

CS: 7.62 mm

Nominal current: 40.5 A

Nominal current - rounded value: 40.5 A

Connection: THT
Soldering

Factory colour: Black

Case material: PA

Manufacturer part #: 1543070000

Content: 36 pc(s)

Contact material: Copper

Height: 14.9 mm

Max. temperature: +130 °C

Min. temperature: -50 °C

Type: SV 7.62HP/05/90MF5 3.5SN BK BX

Dim: 14.9 mm x 28.3

Resistance: 2 mΩ

Insulation resistance: 100 MΩ

Dimensions: 14.9 mm x 28.3 mm

Nominal voltage: 300 V

Number of pins: 5

RoHS-compliant: Yes

Mating cycles: 25

Pin length: 3.5 mm

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Content

Total no. of pins

Weidmüller 1095680000 PCB connector Total number of pins 2 No. of rows 1 60 pc(s)

Item no:1952041

Unavailable

Conrad Electronic

20 A

60 pc(s)

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

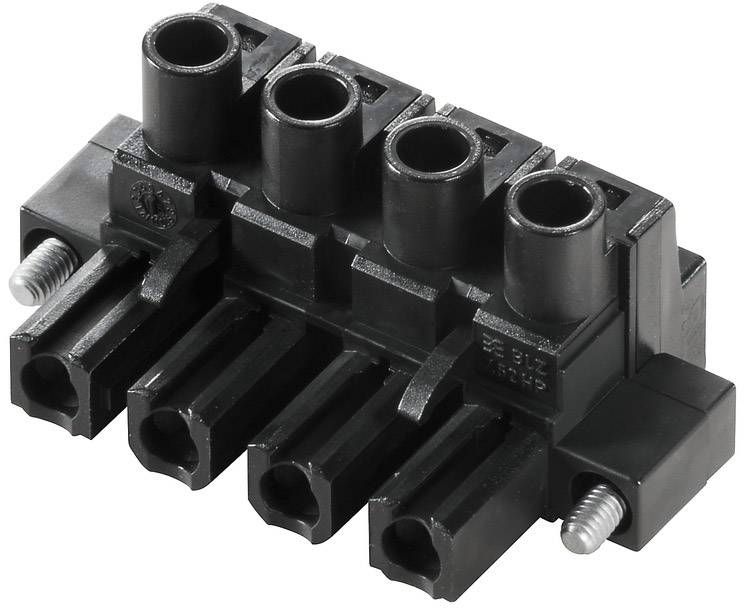

Weidmüller 1095700000 PCB connector Total number of pins 4 No. of rows 1 35 pc(s)

Item no:1952042

Unavailable

Conrad Electronic

20 A

35 pc(s)

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 1137350000 PCB connector Total number of pins 10 No. of rows 1 36 pc(s)

Item no:1952058

Unavailable

Conrad Electronic

20 A

36 pc(s)

5.08 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

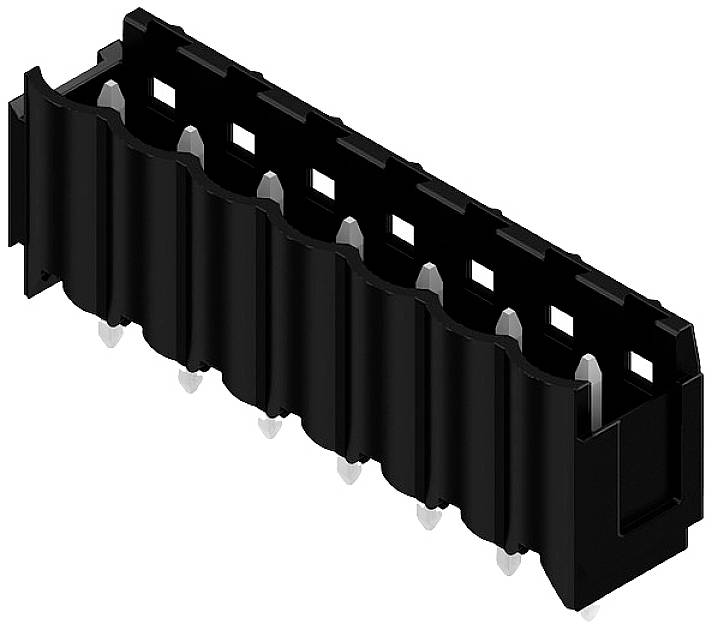

Weidmüller 1210040000 PCB connector Total number of pins 7 No. of rows 2 50 pc(s)

Item no:1952090

Unavailable

Conrad Electronic

50 pc(s)

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 1236370000 PCB connector Total number of pins 12 No. of rows 1 50 pc(s)

Item no:1952095

Unavailable

Conrad Electronic

10 A

50 pc(s)

3.81 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

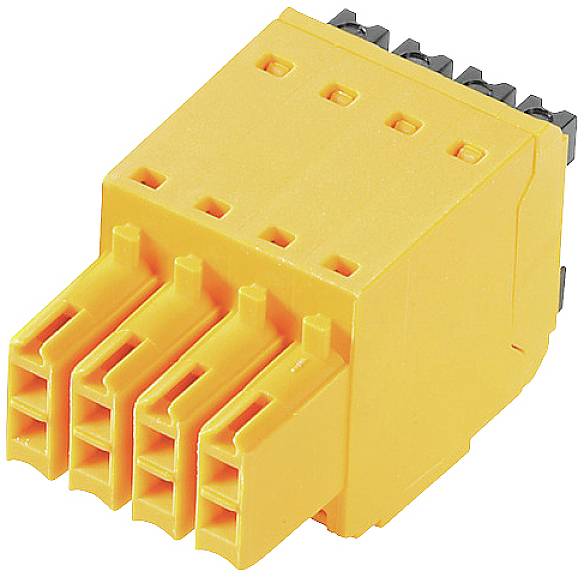

Weidmüller 1277290000 PCB connector Total number of pins 8 No. of rows 1 132 pc(s)

Item no:1952113

Unavailable

Conrad Electronic

9.5 A

132 pc(s)

3.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

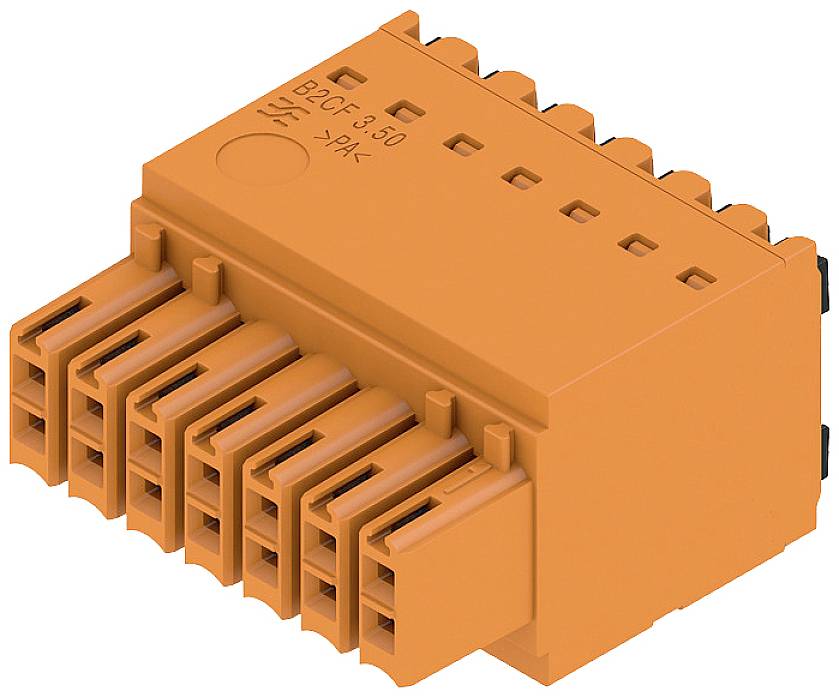

Weidmüller 1277330000 PCB connector Total number of pins 14 No. of rows 1 72 pc(s)

Item no:1949914

Unavailable

Conrad Electronic

9.5 A

72 pc(s)

3.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

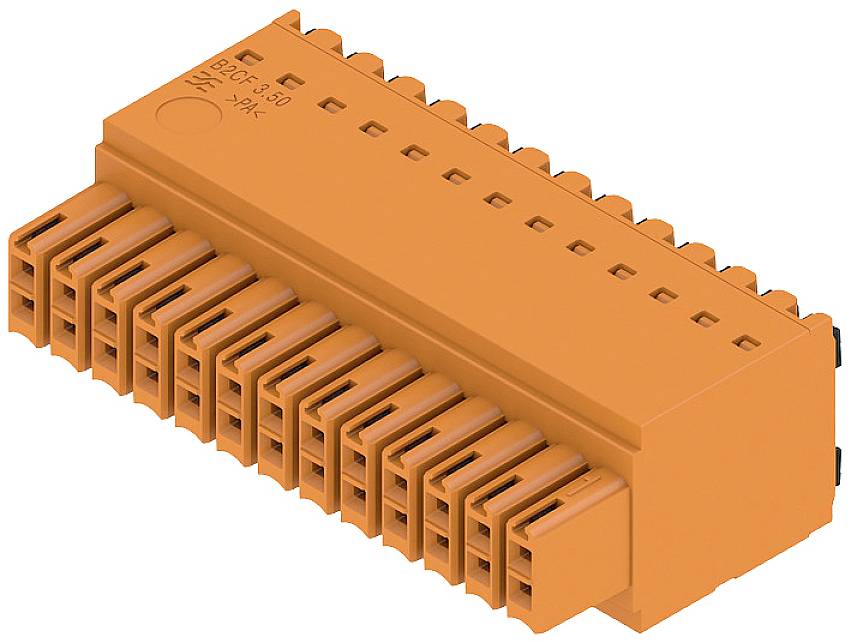

Weidmüller 1277390000 PCB connector Total number of pins 26 No. of rows 1 36 pc(s)

Item no:1949354

Unavailable

Conrad Electronic

9.5 A

36 pc(s)

3.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 1277420000 PCB connector Total number of pins 30 No. of rows 1 30 pc(s)

Item no:1951094

Unavailable

Conrad Electronic

9.5 A

30 pc(s)

3.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

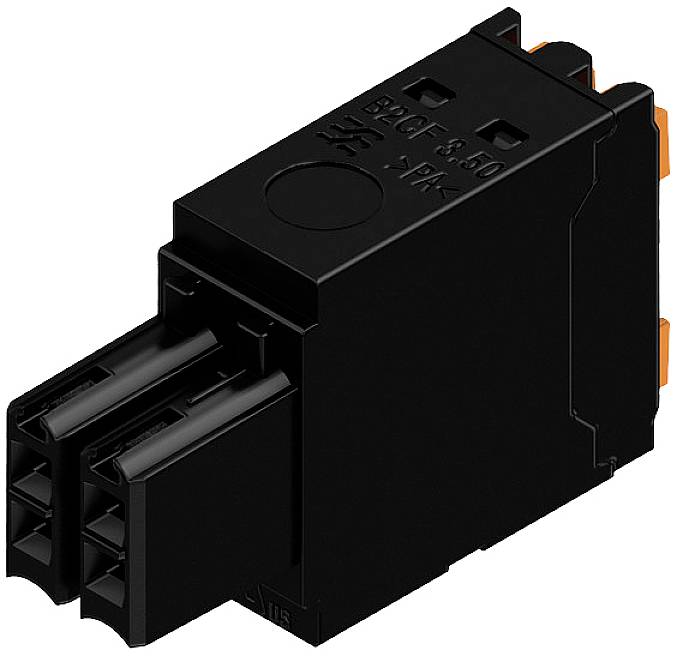

Weidmüller 1277460000 PCB connector Total number of pins 4 No. of rows 1 264 pc(s)

Item no:1949355

Unavailable

Conrad Electronic

9.5 A

264 pc(s)

3.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1
