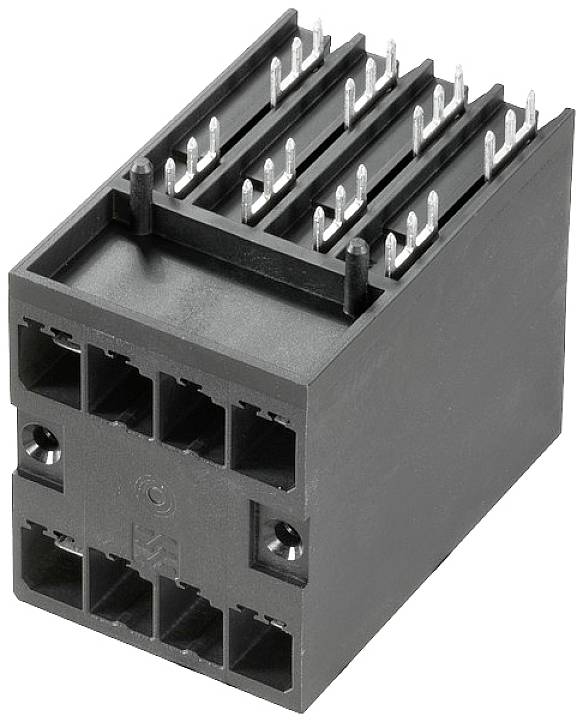

Weidmüller 1543330000 PCB connector Total number of pins 10 No. of rows 2 24 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
10
CS
7.62 mm
Content
24 pc(s)
Total number of pins
10
Datasheet (PDF)
Highlights & Details
- Total number of pins 10
- No. of rows 2
- Content 24 pc(s)
Our service for you
Technical specifications
- Depth: 48.9 mm
- PCB mounting: THT solder connection
- Outlet angle: 270°
- Number of solder pins per pin: 3
- Mounting hole diameter 1.4 mm
- Insulating material: PA GF
- Storage temperature: -25 °C to +55 °C.
- Creepage distance min.: 9.6 mm
- Air distance min.: 6.9 mm
- Touch protection: IP20
- Short-term current resistance: 3 x 1s with 192 A.
- Solder pin length 3.2 mm
- Product type
PCB connector
- Total no. of pins
10
- Total number of pins
10
- No. of rows
2
- CS
7.62 mm
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Pins per row
5
- Connection
THT
Soldering
- Factory colour
Black
- Case material
PA
- Manufacturer part #
1543330000
- Content
24 pc(s)
- Contact material
Copper
- Height
41.9 mm
- Max. temperature
+120 °C
- Min. temperature
-50 °C
- Type
SVD 7.62HP/10/270G 3.2SN BK BX
- Dim
41.9 mm x 48.9
- Resistance
2 mΩ
- Insulation resistance
100 MΩ
- Connector contact surface
Tin plated
- Dimensions
41.9 mm x 48.9 mm
- Nominal voltage
300 V
- Number of pins
10
- RoHS-compliant
Yes
- Mating cycles
25
- Pin length
3.2 mm
- UKCA
not relevant
