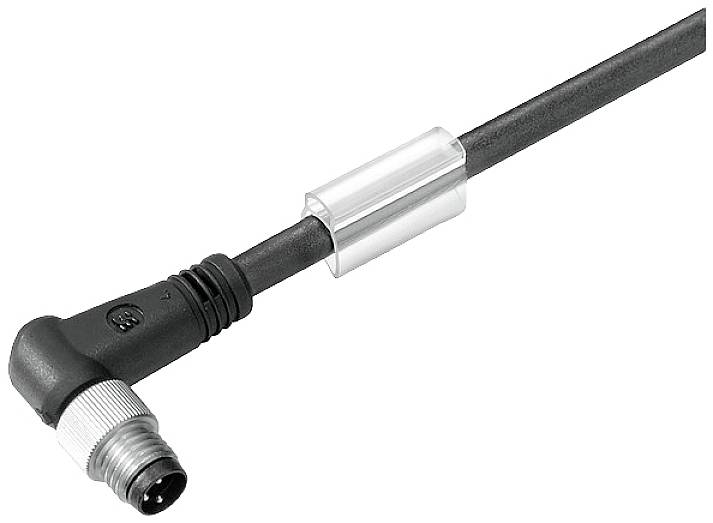

Weidmüller 1555340150 Sensor/actuator connector (pre-fab) M8 Plug 1.50 m No. of pins (RJ): 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug
Connector standard
Sensor connector
Connection side A
M8 plug, straight
Connection side B
Cable, open end
Datasheet (PDF)
Technical specifications
- Type
SAIL-M8W-8-1.5U
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Plug
- Connector standard
Sensor connector
- Connection side A
M8 plug, straight
- Connection side B
Cable, open end
- No. of pins
8
- Cable length
1.50 m
- Jacket material
PUR
- Nominal voltage
30 V
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Outside Ø
5.90
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Factory colour
Black
- Thread type connection side
M8
- Coding
A
- Contact surface
Gold plated
- Features
Halogen-free
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Manufacturer part #
1555340150
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
