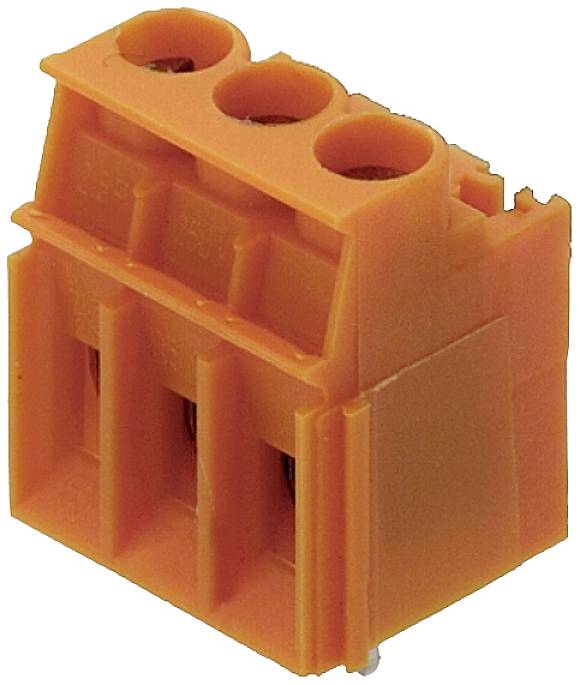

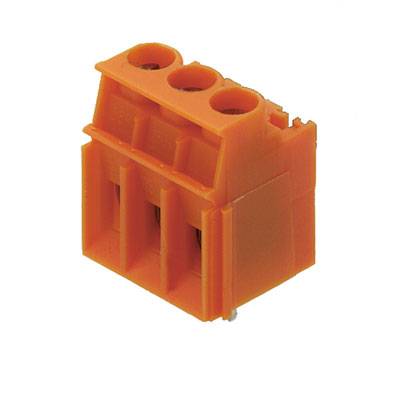

Weidmüller 1594350000 Screw terminal 4 mm² Number of pins 3 Orange 100 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
5 mm
Pins per row
3
Number of pins
3
Connection
Print
Screw terminal
Datasheet (PDF)
Highlights & Details
Screw terminal block
- Content 100 pc(s)
Our service for you
Technical specifications
- Type
LPP 5.00/03/90 3.2SN OR BX
- Product type
Screw terminal
- CS
5 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Series
LP
- Min. stripping length
6 mm
- Stripping length (max.)
6 mm
- Connection
Print
Screw terminal
- Nominal current
20 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
20 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- Connector orientation
Parallel (to the PCB)
- AWG max.
12
- Contact material
Cu-alloy, tin plated
- Factory colour
Orange
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Weight
4.97 g
- Manufacturer part #
1594350000
- Industrial packaging
Yes
- Content
100 pc(s)
- Nominal voltage
300 V
- Width
15.6 mm
- Height
20.2 mm
- Length
13.4 mm
- Type
LPP 5.00/03/90 3.2SN OR BX
- UKCA
not relevant
