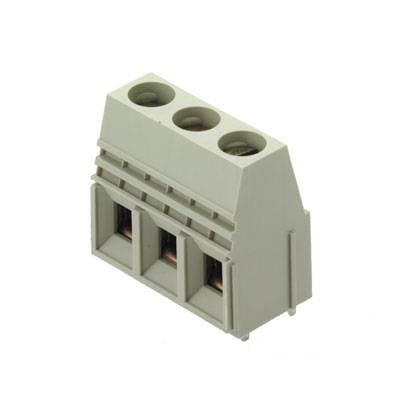

Weidmüller 1635930000 Screw terminal 16 mm² Number of pins 3 Pebble grey 20 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
10.16 mm
Pins per row
3
Number of pins
3
Connection
Print
Screw terminal
Datasheet (PDF)
Highlights & Details
Screw terminal block
Our service for you
Technical specifications
- Type
LU 10.16/03/90 4STI 3.2SN GY BX
- Product type
Screw terminal
- CS
10.16 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Series
LU
- Min. stripping length
12 mm
- Stripping length (max.)
12 mm
- Connection
Print
Screw terminal
- Nominal current
65 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
65 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
22
- Connector orientation
Parallel (to the PCB)
- AWG max.
8
- Contact material
Cathode copper, tin plated
- Enclosure material
Polyamide 6.6
- Factory colour
Pebble grey
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Weight
30.75 g
- Manufacturer part #
1635930000
- Industrial packaging
Yes
- Content
20 pc(s)
- Nominal voltage
300 V
- Width
30.48 mm
- Height
31.7 mm
- Length
18.3 mm
- Type
LU 10.16/03/90 4 STI 3.2SN GY BX
- UKCA
not relevant
