Name: Weidmüller 1651150000 Pin inset RockStar® HDC HDD 24 + PE Crimp 1 pc(s)
Brand: Weidmüller
SKU: 202848

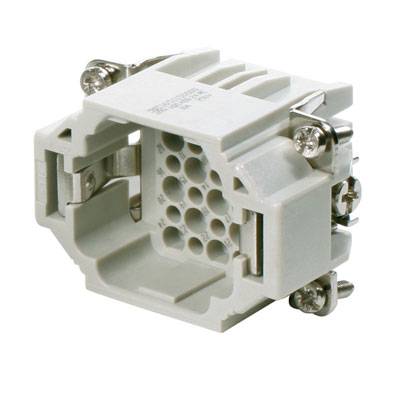

Grey industrial connector with a rectangular opening and multiple round contacts, surrounded by screw connections.

Product type

Pin inset

Connection

Crimp

Series

RockStar® HDC HDD

Features

copper-plated

Total no. of pins

24 + PE

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Pin insert

HDC HDD 24 MC

Technical specifications

Net weight: 40 g
Temperature limit: -40 °C ... 125 °C
Insulation resistance: 1010 Ω
Pollution degree: 3
Width: 34 mm
Height: 35 mm
Depth: 51 mm
Length Socket: 51 mm
Size: 3
Series: HDD
Rated voltage (DIN EN 61984): 250 V
Rated voltage according to UL/CSA: 600 V AC/DC
Rated surge voltage (DIN EN 61984): 4 kV
Rated current (DIN EN 61984): 10 A
flammability class according to UL 94: V-0
Forward resistance: ≤ 4mΩ
Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
Insulation material group: IIIA
Plug cycles AG: ≥ 500
Plug cycles Au: ≥ 500
Connection type PE: Screw connection
conductor cross-section AWG (PE), max.: AWG 14
Wire cross-section AWG (PE), min.: AWG 20
Wire stripping length Rated connection: 8 mm
PE connection: 10 mm
Tightening torque max. PE connection: 1.5 Nm
Tightening torque min. PE connection: 1.2 Nm
Mounting screw: M 4
Cross-head blade dimensions: GR. PZ1
Slotted blade dimensions (PE connection): SD 0.6 x 3.5, SD 0.8 x 4.0
Height of plug: 35 mm

Product type: Pin inset

Series: RockStar® HDC HDD

Features: copper-plated

Connection: Crimp

Total no. of pins: 24 + PE

Core cross section (max.): 2.5 mm²

Number of pins: 24

Core cross section (min.): 0.14 mm²

Content: 1 pc(s)

Leading contact (PE): Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 202848 Weidmüller 1651150000 Pin inset RockStar® HDC HDD 24 + PE Crimp 1 pc(s)

User & Safety Instructions

User & Safety Instructions 202848 Weidmüller 1651150000 Pin inset RockStar® HDC HDD 24 + PE Crimp 1 pc(s)

Description

Pin insert. HDC-Use, pin, 250 V, 10 A, number of poles: 24, crimp connection, size: 3. The HDD series with formed contacts is designed for high number of poles in a confined space. Through the smaller design save user space during installation, without limit in the number of poles. The Conductor Connection level is designed as a crimp contact. For decades, the proven crimp connection technique in use. Crimp contacts are not included in the delivery of inserts. Number of poles: 24, rated current 10 A, rated voltage 250 V, rated voltage according to UL/CSA: 600 V AC/DC. Crimp connection.

This text is machine translated.
