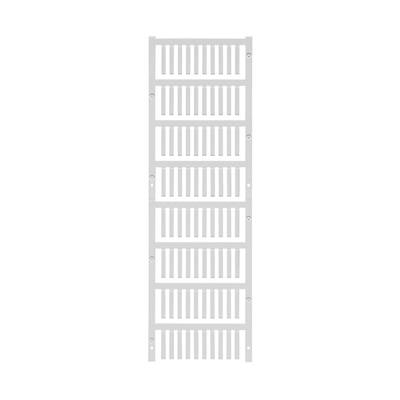

Weidmüller 1689470001 VT SF 5/21 NEUTRAL WS V0 Lead marker Fitting type: Clip Writing area: 7.4 x 21 mm White No. of mar
EAN:
Part number:
Item no:
Product type
Lead marker
Fitting type
Clip
Writing area length
7.4 mm
Writing area width
21 mm
Type
VT SF 5/21 NEUTRAL WS V0
Datasheet (PDF)
Highlights & Details
Lead marker SlimFix
Our service for you
Technical specifications
- Depth: 8 mm
- Net weight: 1,006 g
- flammability class according to UL 94: V-0
- conductor cross-section, max.: 10 mm²
- conductor cross-section, min.: 6 mm²
- Type
VT SF 5/21 NEUTRAL WS V0
- Product type
Lead marker
- Fitting type
Clip
- Writing area length
7.4 mm
- Writing area width
21 mm
- Writing area
7.4 x 21 mm
- Material
PA66
- Features
Printable
Halogen-free
UL94 flammability rating
- Series
VT
- Min. temperature
-50 °C
- Max. temperature
+120 °C
- Suitable for outside Ø (min.)
4.8 mm
- Suitable for outside Ø (max.)
7.4 mm
- Factory colour
White
- No. of markers
160
- Dim
(L x W x H) 21 x 7.4 x 21 mm
- Industrial packaging
Yes
- Content
160 pc(s)
- Width
7.4 mm
- Height
21 mm
- Length
21 mm
- RoHS-compliant
Yes
- Depth
7.5 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 354960 Weidmüller 1689470001 VT SF 5/21 NEUTRAL WS V0 Lead marker Fitting type: Clip Writing area: 7.4 x 21 mm White No. of mar
User & Safety Instructions
User & Safety Instructions 354960 Weidmüller 1689470001 VT SF 5/21 NEUTRAL WS V0 Lead marker Fitting type: Clip Writing area: 7.4 x 21 mm White No. of mar
Description
SlimFix are wire and cable markers in space saving design. The markers can also be used after the cable installation. They consist of halogen-free material and in accordance with the Fire Protection Class V0/V2. SlimFix is a recognized and listed in the Traffic Engineering markers. The SF-Tool enables easy mounting even in case of small markers.
