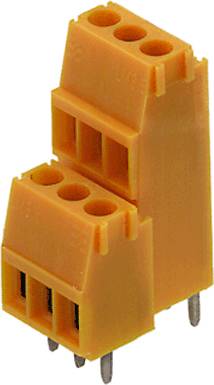

Weidmüller 1703890000 2-tier terminal 1.5 mm² Number of pins 42 Orange 20 pc(s)
EAN:
Part number:
Item no:
Product type
2-tier terminal
CS
3.5 mm
Pins per row
42
Number of pins
42
Connection
Print
Screw terminal
Datasheet (PDF)
Highlights & Details
Two-level terminal block
Our service for you
Technical specifications
- Type
LM2N 3.50/42/90 3.2SN OR BX
- Product type
2-tier terminal
- CS
3.5 mm
- No. of rows
2
- Pins per row
42
- Number of pins
42
- Series
LM
- Min. stripping length
5 mm
- Stripping length (max.)
5 mm
- Connection
Print
Screw terminal
- Nominal current
10 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
10 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
28
- Connector orientation
Parallel (to the PCB)
- AWG max.
14
- Contact material
Cu-alloy, tin plated
- Factory colour
Orange
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Weight
32.96 g
- Manufacturer part #
1703890000
- Industrial packaging
Yes
- Content
20 pc(s)
- Nominal voltage
300 V
- Width
75.85 mm
- Height
27.3 mm
- Length
16.75 mm
- Type
LM2N 3.50/42/90 3.2SN OR BX
- UKCA
not relevant
