Weidmüller 1707270000 SM 27/18 K MC NE WS Device markers Fitting type: Adhesive Writing area: 18 x 27 mm White No. of ma
EAN:
Part number:
Item no:
Product type
Device markers
Fitting type
Adhesive
Writing area length
18 mm
Writing area width
27 mm
Type
SM 27/18 K MC NE WS
Datasheet (PDF)
Highlights & Details

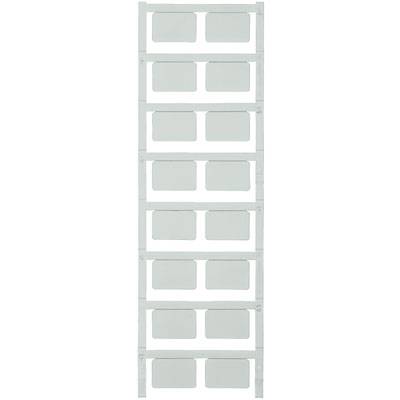

Device marker multi-card
Our service for you
Technical specifications
- Depth: 1 mm
- Net weight: 1.35 g
- Flammability class according to UL 94: V-2
- Glue: Double-sided adhesive tape
- Material color according to resistance code: 9
- Type
SM 27/18 K MC NE WS
- Product type
Device markers
- Fitting type
Adhesive
- Writing area length
18 mm
- Writing area width
27 mm
- Writing area
18 x 27 mm
- Material
PA66
- Suited for series
Devices and appliances
Universal usage
22mm switches
- Features
UL94 flammability rating
- Series
SM
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Factory colour
White
- No. of markers
80
- Dim
(L x W x H) 18 x 27 x 18 mm
- Industrial packaging
Yes
- Content
80 pc(s)
- Width
27 mm
- Height
18 mm
- Length
18 mm
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 355632 Weidmüller 1707270000 SM 27/18 K MC NE WS Device markers Fitting type: Adhesive Writing area: 18 x 27 mm White No. of ma
User & Safety Instructions
User & Safety Instructions 355632 Weidmüller 1707270000 SM 27/18 K MC NE WS Device markers Fitting type: Adhesive Writing area: 18 x 27 mm White No. of ma
Description
SM is a multi-card markers for the identification of Command and warning devices. The signs are locked in the holder or with the pre-applied adhesive film. With the labeling systems PrintJet PRO, Plotter MCP Plus, MCP Basic or MC Mobilo can be used to create individual labels.
· Demand-driven and fast in-house production
· No storage of expensive standard signs required
· High-resistant print quality with the PrintJet as engraving replacement
· For extreme demands, we recommend the protective film ETO SM
· Holder can be used for pushbutton Ø 22 mm from Siemens, ABB, Moeller and telemecanique
This text is machine translated.
· Demand-driven and fast in-house production
· No storage of expensive standard signs required
· High-resistant print quality with the PrintJet as engraving replacement
· For extreme demands, we recommend the protective film ETO SM
· Holder can be used for pushbutton Ø 22 mm from Siemens, ABB, Moeller and telemecanique
This text is machine translated.
