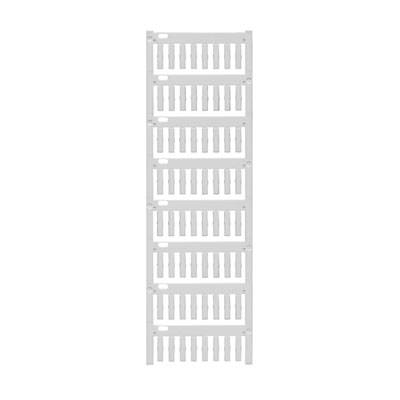

Weidmüller 1718431044 TM-I 18 NEUTRAL WS Device markers Fitting type: Slide-on Writing area: 4 x 18 mm White No. of mark
EAN:
Part number:
Item no:
Product type
Device markers
Fitting type
Slide-on
Writing area length
4 mm
Writing area width
18 mm
Type
TM-I 18 NEUTRAL WS
Datasheet (PDF)
Highlights & Details
Badges Multi-card
Our service for you
Technical specifications
- Depth: 1.7 mm
- Net weight: 0.35 g
- Flammability class according to UL 94: V-2
- Material color according to resistance code: 9
- Type
TM-I 18 NEUTRAL WS
- Product type
Device markers
- Fitting type
Slide-on
- Writing area length
4 mm
- Writing area width
18 mm
- Writing area
4 x 18 mm
- Material
PA66
- Suited for series
Weidmüller TM-H
- Features
UL94 flammability rating
Halogen-free
- Series
TM-I
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Factory colour
White
- No. of markers
320
- Dim
(L x W x H) 18 x 4 x 18 mm
- Industrial packaging
Yes
- Content
320 pc(s)
- Width
4 mm
- Height
18 mm
- Length
18 mm
- RoHS-compliant
Yes
- Depth
2 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 356109 Weidmüller 1718431044 TM-I 18 NEUTRAL WS Device markers Fitting type: Slide-on Writing area: 4 x 18 mm White No. of mark
User & Safety Instructions
User & Safety Instructions 356109 Weidmüller 1718431044 TM-I 18 NEUTRAL WS Device markers Fitting type: Slide-on Writing area: 4 x 18 mm White No. of mark
Description
Highest flexibility at all levels characterizes the use of 12 - 30 mm long TM-I signs for assembling sleeves. The sophisticated contouring of signs provides for tight fit and a smooth installation and replacement. For the multi-card markers typical project identifier surface provides maximum clarity in the separation and mounting. Thereby, the installation or replacement of the signs without any problem before or after mounting the sleeves can be made. In the traffic technology recognized and are listed in five lengths in the range. marker
The correct label for each sleeve!
