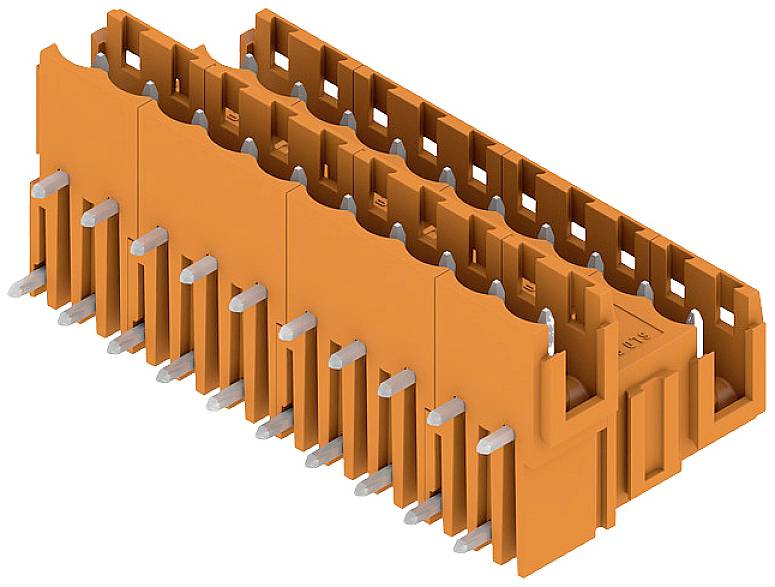

Weidmüller 1726360000 PCB connector Total number of pins 20 No. of rows 2 20 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
20
CS
5.08 mm
Content
20 pc(s)
Total number of pins
20
Datasheet (PDF)
Highlights & Details
- Total number of pins 20
- No. of rows 2
- Content 20 pc(s)
Our service for you
Technical specifications
- Depth: 22.2 mm
- PCB mounting: THT solder connection
- Departure angle: 90°
- Number of solder pins per pin: 1
- Mounting hole diameter 1.3 mm
- Insulation material: PBT
- Storage temperature: -25 °C to +55 °C.
- Solder pin length 3.2 mm
- Product type
PCB connector
- Total no. of pins
20
- Total number of pins
20
- No. of rows
2
- CS
5.08 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Pins per row
10
- Connection
THT
Soldering
- Factory colour
Orange
- Case material
PA
- Manufacturer part #
1726360000
- Content
20 pc(s)
- Contact material
CuSn
- Width
53.34 mm
- Height
29.4 mm
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
SLD 5.08V/20/90B 3.2 SN OR BX
- Dim
(W x H) 53.34 mm x 29.4 mm
- Resistance
5 mΩ
- Insulation resistance
100 MΩ
- Connector contact surface
Tin plated
- Dimensions
53.34 mm x 29.4 mm x 22.2 mm
- Nominal voltage
300 V
- Number of pins
20
- RoHS-compliant
Yes
- Mating cycles
25
- Pin length
3.2 mm
- UKCA
not relevant
