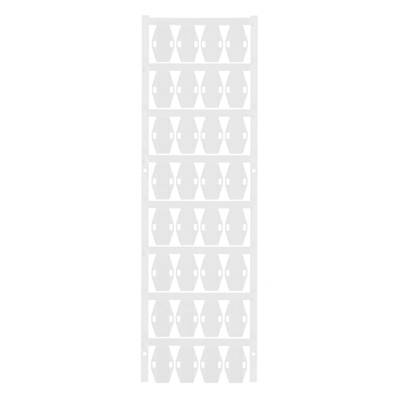

Weidmüller 1727740001 VT SFX 9/24 NE WS V0 Lead marker Fitting type: Cable tie Writing area: 15 x 24 mm White No. of mar
EAN:
Part number:
Item no:
Product type
Lead marker
Fitting type
Cable tie
Writing area length
15 mm
Writing area width
24 mm
Type
VT SFX 9/24 NE WS V0
Datasheet (PDF)
Technical specifications
- Depth: 0.5 mm
- Net weight: 0.65 g
- flammability class according to UL 94: V-0
- Material color according to resistance code: 9
- conductor cross-section, max.: 500 mm²
- conductor cross-section, min.: 16 mm²
- Type
VT SFX 9/24 NE WS V0
- Product type
Lead marker
- Fitting type
Cable tie
- Writing area length
15 mm
- Writing area width
24 mm
- Writing area
15 x 24 mm
- Material
PA66
- Suited for series
Single wires
- Features
Printable
UL94 flammability rating
Halogen-free
- Series
VT
- Min. temperature
-50 °C
- Max. temperature
+120 °C
- Suitable for outside Ø (min.)
7 mm
- Suitable for outside Ø (max.)
40 mm
- Factory colour
White
- No. of markers
320
- Dim
(L x W x H) 24 x 15 x 24 mm
- Industrial packaging
Yes
- Content
320 pc(s)
- Width
15 mm
- Height
24 mm
- Length
24 mm
- RoHS-compliant
Yes
- Depth
0.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 356576 Weidmüller 1727740001 VT SFX 9/24 NE WS V0 Lead marker Fitting type: Cable tie Writing area: 15 x 24 mm White No. of mar
User & Safety Instructions
User & Safety Instructions 356576 Weidmüller 1727740001 VT SFX 9/24 NE WS V0 Lead marker Fitting type: Cable tie Writing area: 15 x 24 mm White No. of mar
Description
Device marker multi-card. Lead marker, multi-card, 24 x 15 mm, polyamide 66.6, color: white. SlimFix X are wire and cable markers in space saving design. The markers can also be used after the cable installation. They consist of halogen-free material and in accordance with the Fire Protection Class V0. SlimFix is a recognized and listed in the Traffic Engineering markers. The SF-Tool enables easy mounting even in case of small markers. Halogen-free material. Fire Protection Class V0. Among other things, in the area of transport recognized and listed marker, technology. From conductor cross-section 16.0 mm² with cable ties to attach. Marker in the tested multi-card format.
