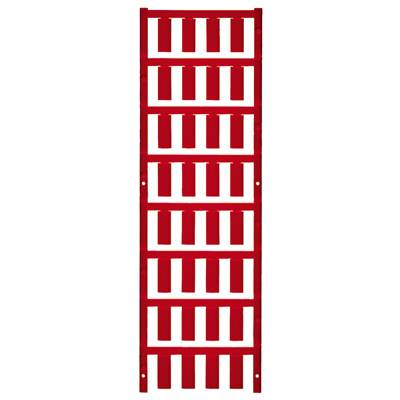

Weidmüller 1730560003 VT SF 6/21 NEUTRAL RT V0 Lead marker Fitting type: Clip Writing area: 8.4 x 21 mm Red No. of marke
EAN:
Part number:
Item no:
Product type
Lead marker
Fitting type
Clip
Writing area length
8.4 mm
Writing area width
21 mm
Type
VT SF 6/21 NEUTRAL RT V0
Datasheet (PDF)
Highlights & Details
Lead marker SlimFix
Our service for you
Technical specifications
- Depth: 8.5 mm
- Net weight: 1,006 g
- flammability class according to UL 94: V-0
- conductor cross-section, max.: 16 mm²
- conductor cross-section, min.: 10 mm²
- Type
VT SF 6/21 NEUTRAL RT V0
- Product type
Lead marker
- Fitting type
Clip
- Writing area length
8.4 mm
- Writing area width
21 mm
- Writing area
8.4 x 21 mm
- Material
PA66
- Features
Printable
Halogen-free
UL94 flammability rating
- Series
VT
- Min. temperature
-50 °C
- Max. temperature
+120 °C
- Suitable for outside Ø (min.)
5.8 mm
- Suitable for outside Ø (max.)
7.8 mm
- Factory colour
Red
- No. of markers
160
- Dim
(L x W x H) 21 x 8.4 x 21 mm
- Industrial packaging
Yes
- Content
160 pc(s)
- Width
8.4 mm
- Height
21 mm
- Length
21 mm
- RoHS-compliant
Yes
- Depth
8.4 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 356763 Weidmüller 1730560003 VT SF 6/21 NEUTRAL RT V0 Lead marker Fitting type: Clip Writing area: 8.4 x 21 mm Red No. of marke
User & Safety Instructions
User & Safety Instructions 356763 Weidmüller 1730560003 VT SF 6/21 NEUTRAL RT V0 Lead marker Fitting type: Clip Writing area: 8.4 x 21 mm Red No. of marke
Description
SlimFix are wire and cable markers in space saving design. The markers can also be used after the cable installation. They consist of halogen-free material and in accordance with the Fire Protection Class V0/V2. SlimFix is a recognized and listed in the Traffic Engineering markers. The SF-Tool enables easy mounting even in case of small markers.
