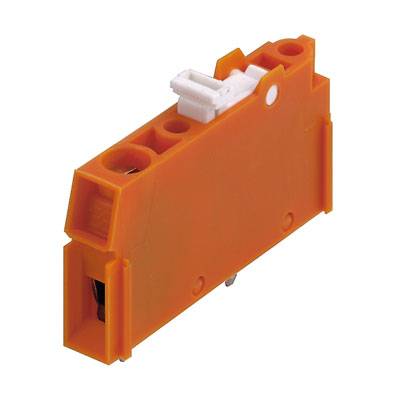

Weidmüller 1755180000 Screw terminal 4 mm² Number of pins 1 Orange 100 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
5.08 mm
Pins per row
1
Number of pins
1
Connection
Print
Screw terminal
Datasheet (PDF)
Highlights & Details
Screw terminal block
Our service for you
Technical specifications
- Type
LPTR 5.08/01/90 3.2SN OR BX
- Product type
Screw terminal
- CS
5.08 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Series
LP
- Min. stripping length
6 mm
- Stripping length (max.)
6 mm
- Connection
Print
Screw terminal
- Nominal current
15 A
- Cross section (flexible) (min.)
0.5 mm²
- Nominal current - rounded value
15 A
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
26
- Connector orientation
Parallel (to the PCB)
- AWG max.
12
- Contact material
Cu-alloy, tin plated
- Factory colour
Orange
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Weight
4.11 g
- Manufacturer part #
1755180000
- Industrial packaging
Yes
- Content
100 pc(s)
- Nominal voltage
300 V
- Width
5.68 mm
- Height
22.8 mm
- Length
32.6 mm
- Type
LPTR 5.08/01/90 3.2SN OR BX
- UKCA
not relevant
