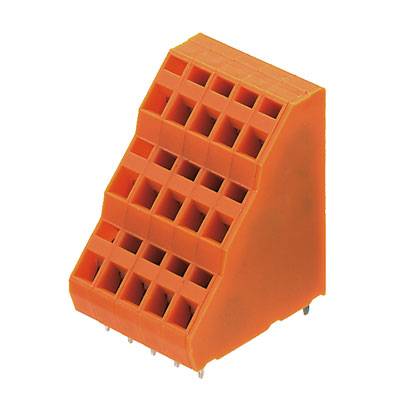

Weidmüller 1758040000 3-tier terminal 1.5 mm² Number of pins 21 Orange 20 pc(s)
EAN:
Part number:
Item no:
Product type
3-tier terminal
CS
5.08 mm
Pins per row
21
Number of pins
21
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
Highlights & Details
Three-level terminal
Our service for you
Technical specifications
- Type
LM3RZF 5.08/21/135 3.5SN OR BX
- Product type
3-tier terminal
- CS
5.08 mm
- No. of rows
3
- Pins per row
21
- Number of pins
21
- Series
LMZF
- Min. stripping length
7.5 mm
- Stripping length (max.)
7.5 mm
- Connection
Spring-loaded terminal
Print
- Nominal current
10 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
10 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
24
- Connector orientation
At an angle (to the PCB)
- AWG max.
14
- Contact material
Tin plated
- Factory colour
Orange
- Wire protection
Yes
- Weight
34.95 g
- Manufacturer part #
1758040000
- Industrial packaging
Yes
- Content
20 pc(s)
- Nominal voltage
300 V
- Width
36.26 mm
- Height
40.1 mm
- Length
32.2 mm
- Type
LM3RZF 5.08/21/135 3.5SN OR BX
- UKCA
not relevant
