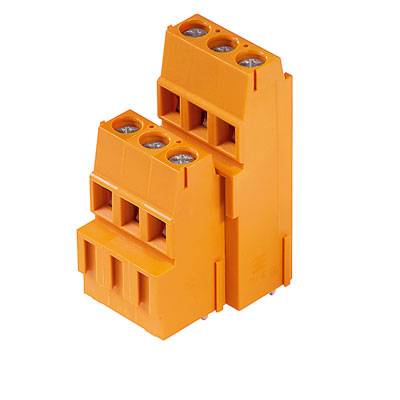

Weidmüller 1769310000 2-tier terminal 2.5 mm² Number of pins 18 Orange 20 pc(s)
EAN:
Part number:
Item no:
Product type
2-tier terminal
CS
5.08 mm
Pins per row
18
Number of pins
18
Connection
Print
Screw terminal
Datasheet (PDF)
Highlights & Details
Two-level terminal block
Our service for you
Technical specifications
- Type
LM2H 5.08/18/90 3.5SN OR BX
- Product type
2-tier terminal
- CS
5.08 mm
- No. of rows
2
- Pins per row
18
- Number of pins
18
- Series
LM
- Min. stripping length
6 mm
- Stripping length (max.)
6 mm
- Connection
Print
Screw terminal
- Nominal current
15 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
15 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
24
- Connector orientation
Parallel (to the PCB)
- AWG max.
14
- Contact material
Cu-alloy, tin plated
- Enclosure material
Polyamide
- Factory colour
Orange
- Wire protection
Yes
- Weight
36.75 g
- Manufacturer part #
1769310000
- Industrial packaging
Yes
- Content
20 pc(s)
- Nominal voltage
300 V
- Width
49.26 mm
- Height
40.1 mm
- Length
22.8 mm
- Type
LM2H 5.08/18/90 3.5SN OR BX
- UKCA
not relevant
