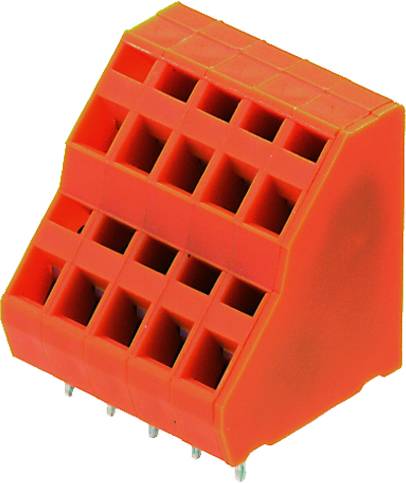

Weidmüller 1782530000 2-tier terminal 1.5 mm² Number of pins 32 Orange 10 pc(s)
EAN:
Part number:
Item no:
Product type
2-tier terminal
CS
5.08 mm
Pins per row
32
Number of pins
32
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
Highlights & Details
Two-level terminal block
Our service for you
Technical specifications
- Type
LM2NZF 5.08/32/135 3.5SN OR BX
- Product type
2-tier terminal
- CS
5.08 mm
- No. of rows
2
- Pins per row
32
- Number of pins
32
- Series
LMZF
- Min. stripping length
7.5 mm
- Stripping length (max.)
7.5 mm
- Connection
Spring-loaded terminal
Print
- Nominal current
10 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
10 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
24
- Connector orientation
At an angle (to the PCB)
- AWG max.
14
- Contact material
Tin plated
- Factory colour
Orange
- Wire protection
Yes
- Weight
45.7 g
- Manufacturer part #
1782530000
- Industrial packaging
Yes
- Content
10 pc(s)
- Nominal voltage
300 V
- Width
81.98 mm
- Height
29.1 mm
- Length
24.05 mm
- Type
LM2 NZF 5.08/32/135 3.5SN OR BX
- UKCA
not relevant
