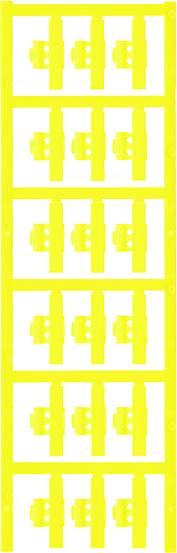

Weidmüller 1805830000 SFC 2/30 NEUTRAL GE Badge Fitting type: Clip Writing area: 5.80 x 30 mm Yellow No. of markers: 90
EAN:
Part number:
Item no:
Product type
Badge
Fitting type
Clip
Writing area length
5.80 mm
Writing area width
30 mm
Type
SFC 2/30 NEUTRAL GE
Datasheet (PDF)
Highlights & Details
Character holder Slim Fix
Our service for you
Technical specifications
- Depth: 7.6 mm
- Net weight: 0.61 g
- flammability class according to UL 94: V-2
- Material color according to resistance code: 4
- conductor cross-section, max.: 4 mm²
- conductor cross-section, min.: 3 mm²
- Type
SFC 2/30 NEUTRAL GE
- Product type
Badge
- Fitting type
Clip
- Writing area length
5.80 mm
- Writing area width
30 mm
- Writing area
5.80 x 30 mm
- Material
PA66
- Suited for series
Single wires
- Features
UL94 flammability rating
Halogen-free
- Series
SFC
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Suitable for outside Ø (min.)
3 mm
- Suitable for outside Ø (max.)
5 mm
- Factory colour
Yellow
- No. of markers
90
- Dim
(L x W x H) 30 x 5.8 x 30 mm
- Industrial packaging
Yes
- Content
90 pc(s)
- Width
5.8 mm
- Height
30 mm
- Length
30 mm
- RoHS-compliant
Yes
- Depth
7 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 276415 Weidmüller 1805830000 SFC 2/30 NEUTRAL GE Badge Fitting type: Clip Writing area: 5.80 x 30 mm Yellow No. of markers: 90
User & Safety Instructions
User & Safety Instructions 276415 Weidmüller 1805830000 SFC 2/30 NEUTRAL GE Badge Fitting type: Clip Writing area: 5.80 x 30 mm Yellow No. of markers: 90
Description
The halogen-free SlimFix clip made of robust polyamide 66 combines two advantages in one product. By the unique clip closure, it can be to each installation time so easily as an open marker install and offers the security of a closed markierers application-oriented.
